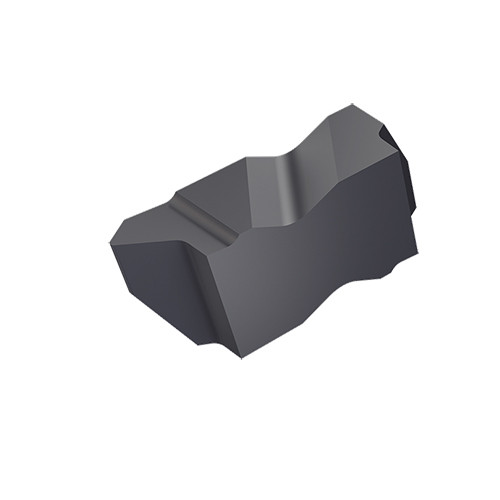

FLJK-3008R20 IC908
Double-ended, precision threading inserts with a positive rake
| Thread Standard | THFT | | Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | |
| Threads per Inch (TPI) | 20 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

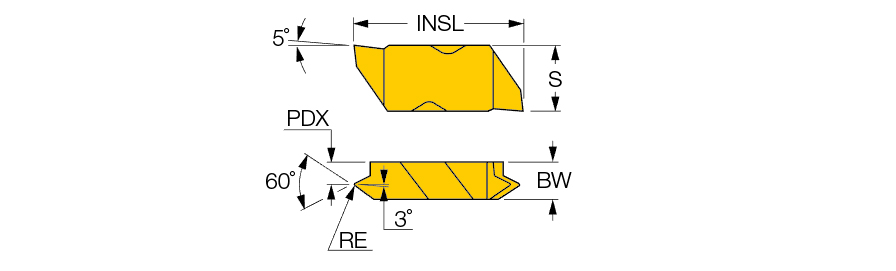

| Corner Radius (RE) | 0.19 mm | Profile Included Angle (PNA) | 60 Degrees |
| Insert Thickness (S) | 8.74 mm | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | NJ60 |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Double-ended, precision threading inserts with a positive rake | FamilyName | UNJ THREADING FLJK |
| Remarks | DMIN according to related boring bar Internal tolerance: MIL-S-8879C - 3B External tolerance: MIL-S-8879C - 3A | BrandName | Iscar |
| COO | USA |
Shipping Info
Name
On-Edge Threading Indexable Inserts
FamilyName
UNJ THREADING FLJK
BrandName
Iscar
