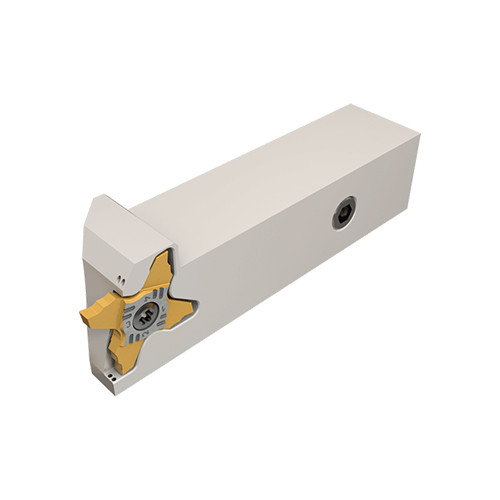

QTHL 20-30-JHP-MC
Grooving and parting tools carrying GROOVE-4-CUT inserts with inlets for high-pressure coolant.
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Minimum (CWN) | 1 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 3 mm | Functional Width (WF) | 18.5 mm |
| Overall Length (OAL) | 93.5 mm | Coolant Entry Thread Size (CNT) | G1/8 |
| Head Length (LH) | 23 mm | Head Bottom Offset Height (HBH) | 5 mm |
| Cutting Depth Maximum (CDX) | 7.3 mm | Tool Assembly Length (LTA) | 43.5 mm |
| Application | | Ext. Grooving | Parting | | Unit | M |
Product Features
| Family Description | Grooving and parting tools carrying GROOVE-4-CUT inserts with inlets for high-pressure coolant. | FamilyName | QTHR/L-30-JHP-MC |
| Remarks | For more details, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3500
Name
Parting Off Indexable Holders
FamilyName
QTHR/L-30-JHP-MC
BrandName
Iscar
