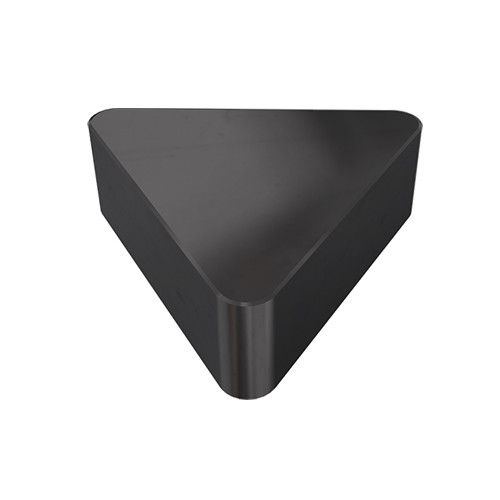

TNGN 110308S-S BI30KC
Negative 60° triangular solid top CBN for cast iron machining
| Application | | Ext. 60° Triangle 93° Approach | Int. 60° Triangle 91° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | TNGN | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 5 mm |
| Insert Size | 222S-S | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 11 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm | Body Material | Carbide |
| Grade | BI30KC | Unit | M |
Product Features
| Family Description | Negative 60° triangular solid top CBN for cast iron machining | FamilyName | TNGN S (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
TNGN S (CBN)
BrandName
Iscar
