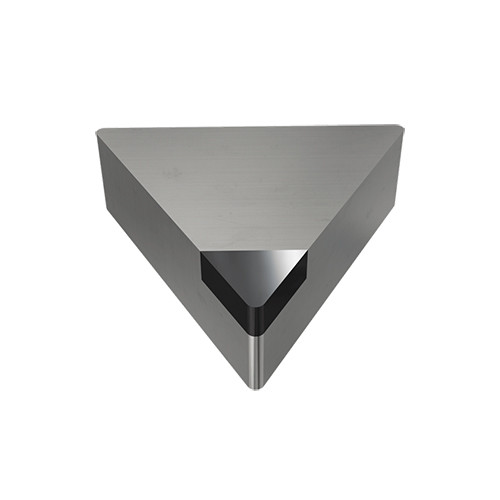

TNGN 130304F ID4
Negative 60° triangular inserts with a single PCD tip for machining non-ferrous materials.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | ID4 |
| Application | | Ext. 60° Triangle 93° Approach | Int. 60° Triangle 91° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | TNGN | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 1 mm |
| Insert Size | 2.521F | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 13.7 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 7.94 mm | Body Material | Carbide |
| Cutting Edge Material | PCD | Unit | M |
| Coating | UNCOATED |
Product Features
| Family Description | Negative 60° triangular inserts with a single PCD tip for machining non-ferrous materials. | FamilyName | TNGN (PCD) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
TNGN (PCD)
BrandName
Iscar
