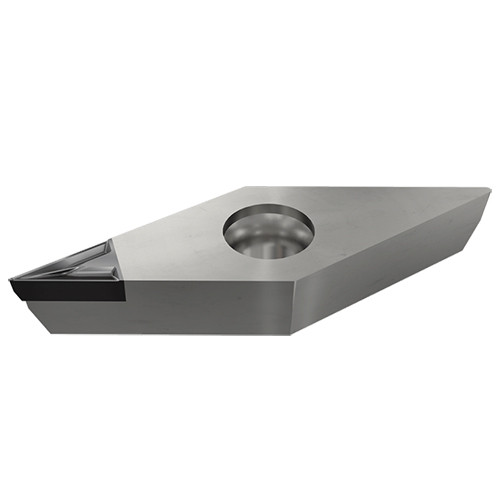

VCGT 160404F MD ID5
Positive 35° rhombic inserts with MD/RD chipbreaking PCD tips, used for aluminum Finishing and Medium applications and other non-ferrous materials.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 95° Approach | Y Axis for Swiss Type Machines | | Tool Type | Turn Positive Inserts |
| Insert Style | VCGT | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 1 mm |
| Insert Size | 331F M | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Carbide |
| Cutting Edge Material | PCD | Unit | M |
| Grade | ID5 |
Product Features
| Family Description | Positive 35° rhombic inserts with MD/RD chipbreaking PCD tips, used for aluminum Finishing and Medium applications and other non-ferrous materials. | FamilyName | VCGT MD/RD (PCD) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.0320
Name
Turning Indexable Inserts
FamilyName
VCGT MD/RD (PCD)
BrandName
Iscar
