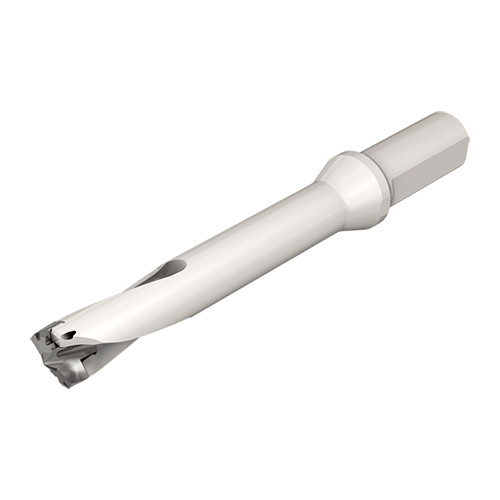

DCN 1260-275-125A-8D-BD
Exchangeable head drills with a reinforced body and a flat shank, diameter ratio 8xD, for construction beam industry.

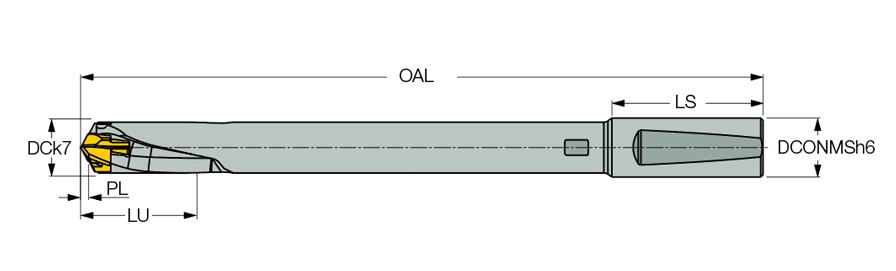

| Cutting Diameter (DC) | 1.26″ | Overall Length (OAL) | 15.077″ |
| Usable Length (LU) | 1.97″ | Shank Length (LS) | 2.36″ |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IHP 320-BD |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Point Length (PL) | 0.156″ |
| Insert Seat Size Code (SSC) | 32.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 1.26″ | Flange Diameter (DF) | 1.53″ |
| Cutting Diameter Maximum (DCX) | 1.299″ | Decimal Equivalent | 1.26″ |
| Protruding Length (LPR) | 12.715″ | Unit | I |
| Functional Length (LF) | 12.561″ |
Product Features
| Family Description | Exchangeable head drills with a reinforced body and a flat shank, diameter ratio 8xD, for construction beam industry. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
4.9736
