SNGN 120408 T01020 IS26

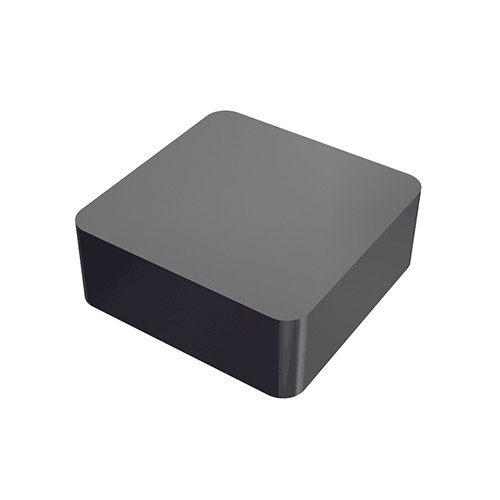

Negative square double-sided ceramic inserts for machining cast iron, hardened steel and heat-resistant alloys
| Applicable Material | | Cast Iron | | Min D.O.C. | 0.5 mm |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Facing | Shouldering | Slanted Shoulder & Chamfer | | Depth of Cut Maximum (APMX) | 3 mm |

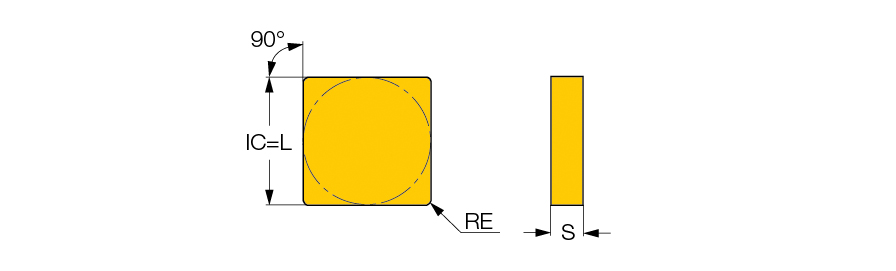

| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 32 T04 | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Cutting Edge Length (L) | 12.7 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IS26 | Unit | M |
| Tool Type | Turn Ultra hard Inserts |
Product Features
| Family Description | Negative square double-sided ceramic inserts for machining cast iron, hardened steel and heat-resistant alloys | FamilyName | SNGN (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0046
Name
Turning Indexable Inserts
FamilyName
SNGN (CER)
BrandName
Iscar
