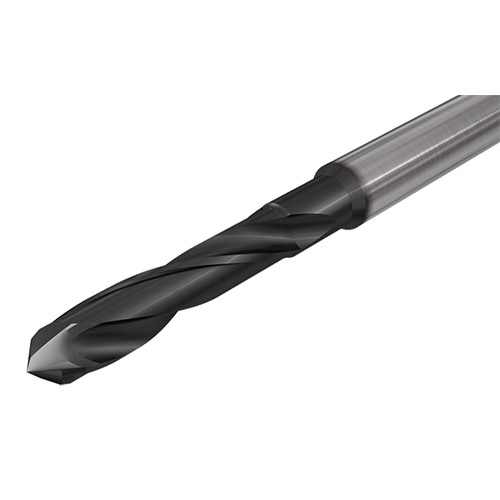

SCD 0485-028-060 CVD
Solid carbide drills with CVD coating for composite materials (CFRP) and Stack Machining

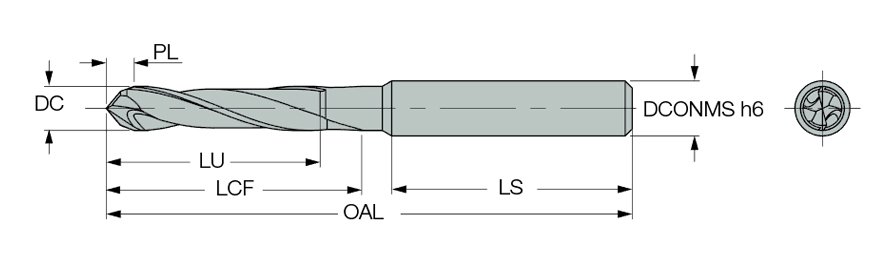

| Drill Bit Size / Cutting Diameter (DC) | 4.85 mm | Usable Length (LU) | 28 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.85 mm | Length Chip Flute (LCF) | 35 mm |
| Application | | Drilling | | Overall Length (OAL) | 70 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 32 mm | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | solid carbide Drills | Shank Diameter Tolerance (TCDMM) | h6 |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | Solid carbide drills with CVD coating for composite materials (CFRP) and Stack Machining | COO | Israel |
Shipping Info
Weight per item
0.0230
