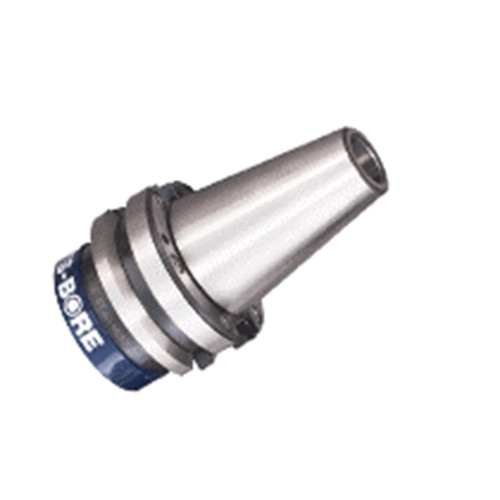

BT40 FC MB50
MB modular boring system with BT MAS-403 face contact AD tapered shanks
| Shank Size (SS) | 40 | Body Material | Steel |
| Protruding Length (LPR) | 48 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Tool Type | BT |
| Connection Size (CSI) | MB50 | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | MB modular boring system with BT MAS-403 face contact AD tapered shanks | COO | Italy |
| Remarks | For adaptation details, click on More Info |
Shipping Info
Weight per item
1.0490
