SER 3232 P22U

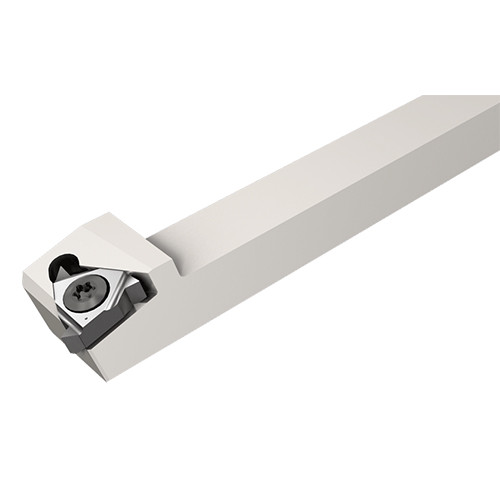

External threading toolholders (AD - short tools for adapter holders).

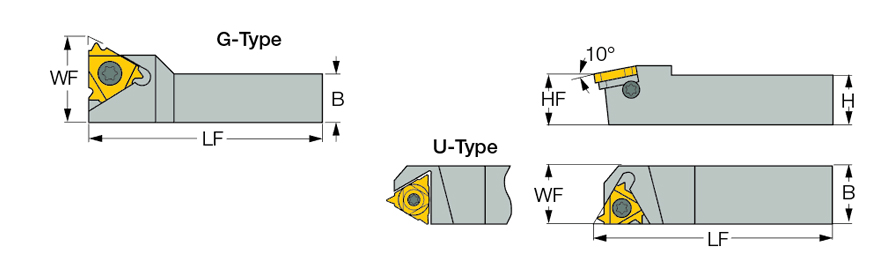

| Shank Height (H) | 32 mm | Body Material | Steel |
| Shank Width (B) | 32 mm | Tool Type | External Non-Rotating Threading Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Application | | Ext. Grooving | External Threading | | Unit | M |
Product Features
| Family Description | External threading toolholders (AD - short tools for adapter holders). | FamilyName | SER/L |
| Remarks | All tools are made for 1.5 helix angle For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M For GTGA inserts, use anvil AE 16-0 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.3210
Name
Laydown Threading Indexable Holders
FamilyName
SER/L
BrandName
Iscar
