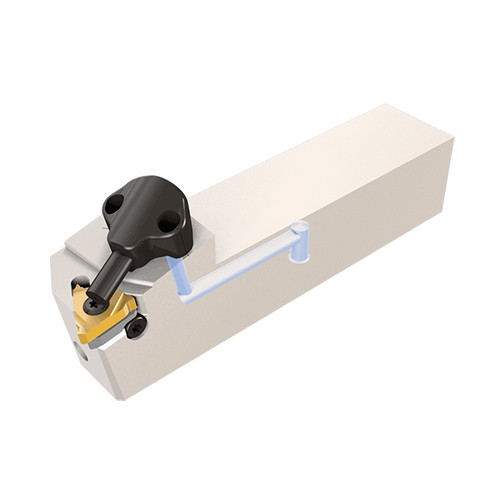

SEL 2020X16 JHP-MC
External threading tools with bottom inlet coolant channels.

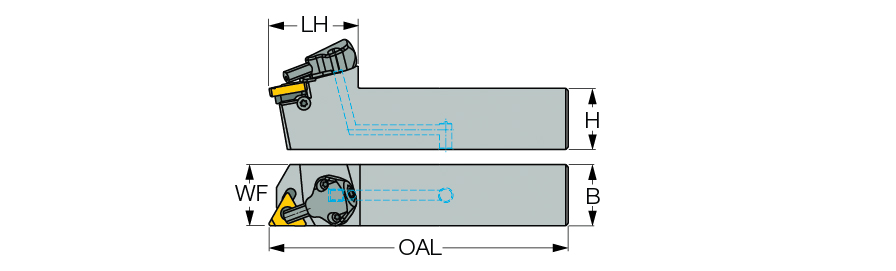

| Head Length (LH) | 36.2 mm | Application | | Ext. Grooving | External Threading | |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | External threading tools with bottom inlet coolant channels. | FamilyName | SER/L-JHP-MC |
| Remarks | All tools are made for 1.5 helix angle For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M For GTGA inserts, use anvil AE 16-0 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4100
Name
Laydown Threading Indexable Holders
FamilyName
SER/L-JHP-MC
BrandName
Iscar
