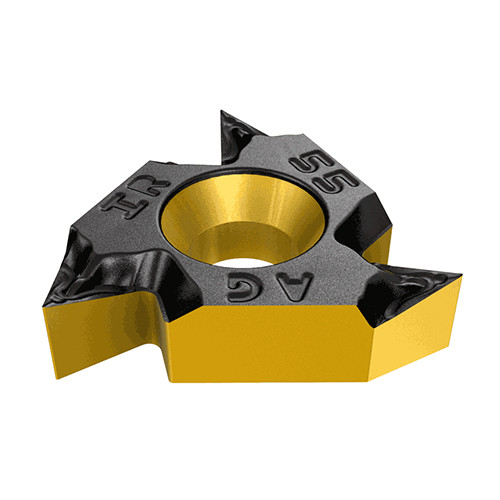

16IRM G 55 IC808
Internal 55° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general applications
| Thread Standard | THFT | | Cutting Direction (HAND) | Right Hand |

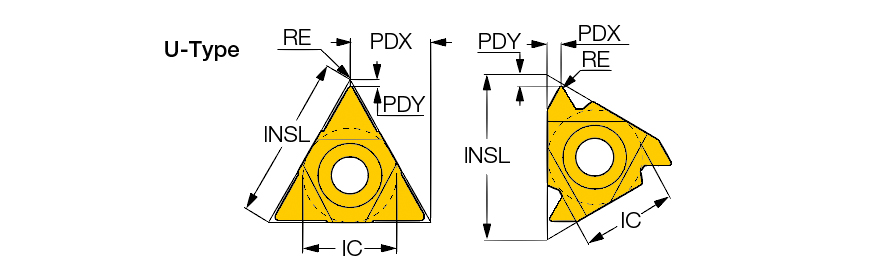

| Inscribed Circle Diameter (IC) | 9.52 mm | Threads per Inch Minimum (TPIN) | 8 |
| Insert Length (INSL) | 16.49 mm | Threads per Inch Maximum (TPIX) | 14 |
| Corner Radius (RE) | 0.2 mm | Tool Type | Threading Regular Inserts |
| Grade | IC808 | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | VP55 |
| Application | | Internal Thread Milling | Internal Threading lay down | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Distance EY (PDY) | 1.2 mm |
Product Features
| Family Description | Internal 55° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general applications | FamilyName | IR/L-55° |
| Remarks | For insert identification system, click on More Info. For threading between walls use GRIP-type inserts TIP-WT, GEPI-WT, TIPI-WT. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0052
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-55°
BrandName
Iscar
