INR3031L (1.58) IC808

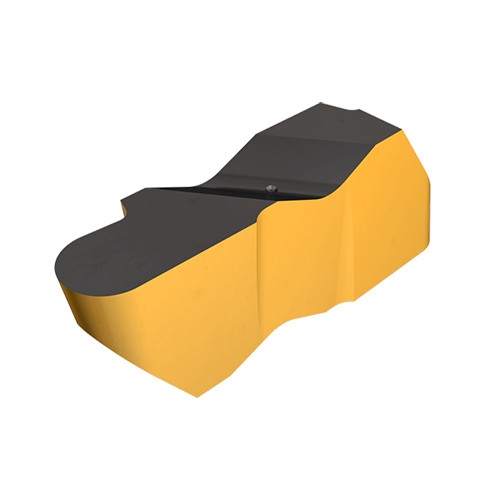

Precision double-ended grooving flat top round inserts.

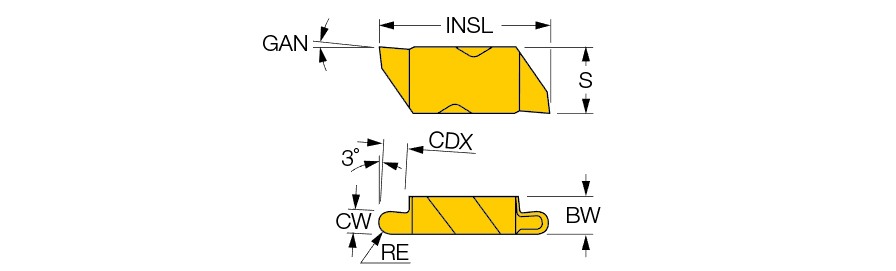

| Cutting Width (CW) | 1.58 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.79 mm | Application | | Ext. Grooving | Ext. Profiling | Int. Grooving | Int. Profiling | |
| Cutting Depth Maximum (CDX) | 3.17 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 8.65 mm | Measurement Type | Metric |
| Insert Length (INSL) | 22.6 mm | Tool Type | Groove-Turn Precision Inserts |
| Insert Rake Angle (GAN) | 0 Degrees | Body Material | Carbide |
| Coating | TiAlN+AlTiN+TiN | Unit | M |
| Grade | IC808 |
Product Features
| Family Description | Precision double-ended grooving flat top round inserts. | FamilyName | INR/INRP-R/L |
| Remarks | DMIN according to related boring bar | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0129
Name
Groove/Turn Indexable Inserts
FamilyName
INR/INRP-R/L
BrandName
Iscar
