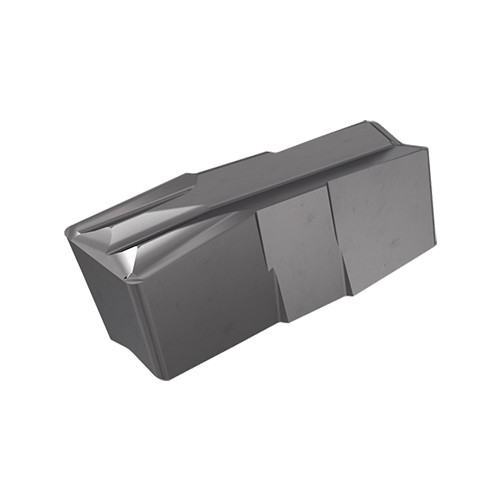

GIF 5.00E-0.80 IC808
CUT-GRIP, precision, double-ended inserts for grooving and turning at low to-medium feeds.

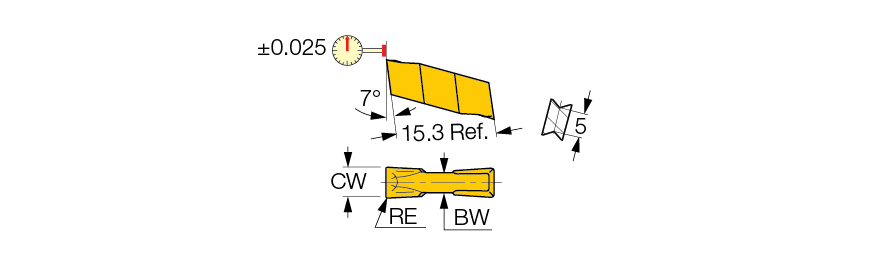

| Cutting Width (CW) | 5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 13 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Insert Length (INSL) | 15.3 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 70 mm | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Unit | M |
Product Features
| Family Description | CUT-GRIP, precision, double-ended inserts for grooving and turning at low to-medium feeds. | FamilyName | GIF-E (W 4-6) |
| Remarks | DMIN for internal machining = 70 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0069
Name
Groove/Turn Indexable Inserts
FamilyName
GIF-E (W 4-6)
BrandName
Iscar
