GIPI 2.70-0.15 IC908

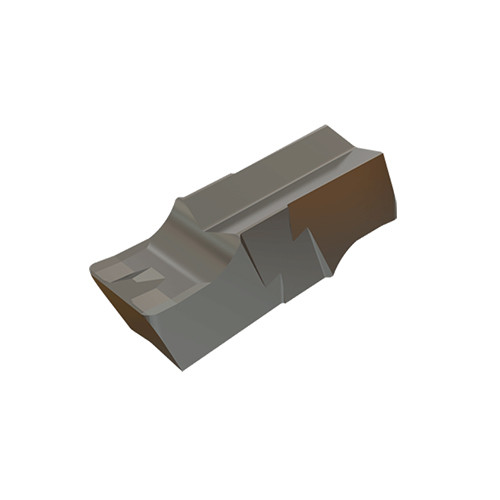

Double-ended precision inserts with P-type chipformer for internal grooving and recessing at medium feeds.

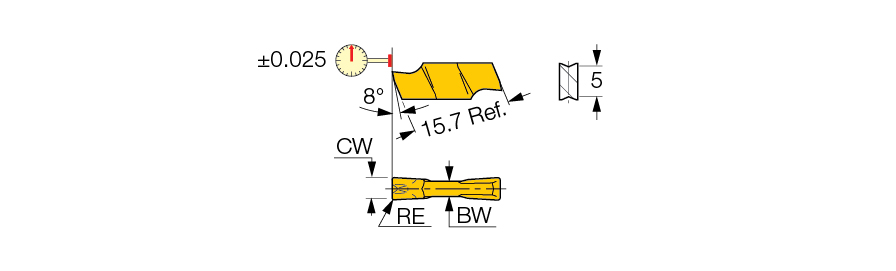

| Cutting Width (CW) | 2.7 mm | Application | | Int. Grooving | Internal Groove Milling | Side Slotting | T Slotting | |
| Corner Radius (RE) | 0.15 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 8 Degrees | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 20 mm | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Double-ended precision inserts with P-type chipformer for internal grooving and recessing at medium feeds. | FamilyName | GIPI |
| Remarks | DMIN for internal application = 20 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0039
Name
Groove/Turn Indexable Inserts
FamilyName
GIPI
BrandName
Iscar
