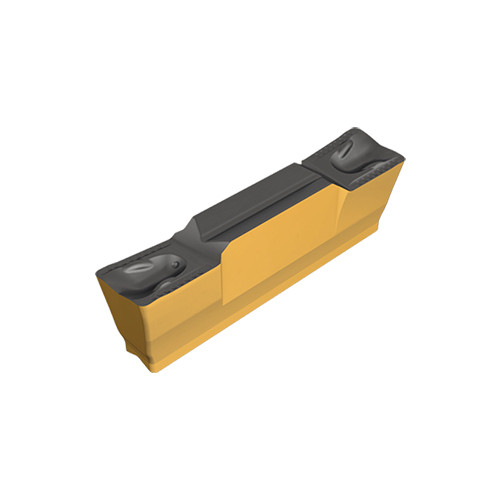

GRIP 6005Y IC8250
Double-ended inserts, for turning & grooving in external, internal and face applications.

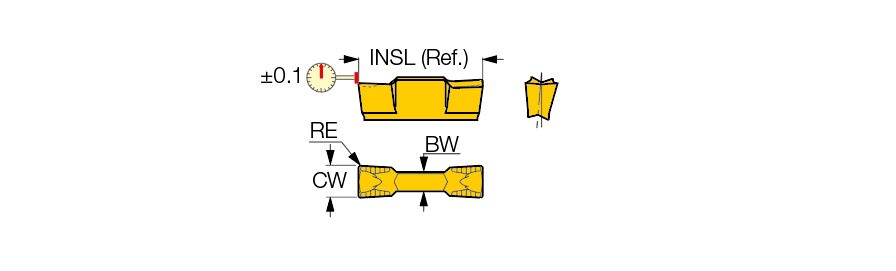

| Cutting Width (CW) | 6 mm | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.5 mm | Axial Groove Outside Diameter Minimum (DAXN) | 21.9 mm |
| Insert Length (INSL) | 19 mm | Number of Teeth | 2 |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Metric |
| Grade | IC8250 | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |

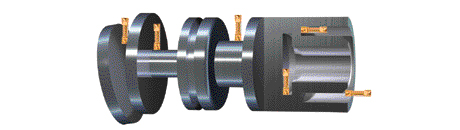

| Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Groove & Turn | Int. Grooving | Parting | | Unit | M |
Product Features
| Family Description | Double-ended inserts, for turning & grooving in external, internal and face applications. | FamilyName | GRIP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0079
Name
Groove/Turn Indexable Inserts
FamilyName
GRIP
BrandName
Iscar
