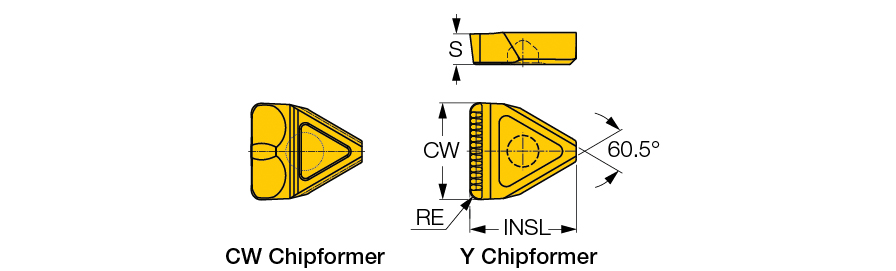

| Cutting Width (CW) | 12 mm | Application | | Ext. Grooving | |
| Corner Radius (RE) | 1.2 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.05 mm | Max. Grooving Feed (fg(max)) | 0.4 mm/rev |
| Insert Thickness (S) | 5.05 mm | Min. Grooving Feed (fg(min)) | 0.2 mm/rev |
| Overall Length (OAL) | 14 mm | Tool Type | Groove-Turn Utility Inserts |
| Insert Length (INSL) | 14 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN+TiN | Cutting Width Tolerance (+/-) (CWTOL) | 0.08 mm |
| Grade | IC830 | Unit | M |
Product Features
| Family Description | Utility single-ended inserts for external heavy grooving and deep machining. | FamilyName | TIGER-IQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0088
Name
Parting Off Indexable Inserts
FamilyName
TIGER-IQ
BrandName
Iscar
