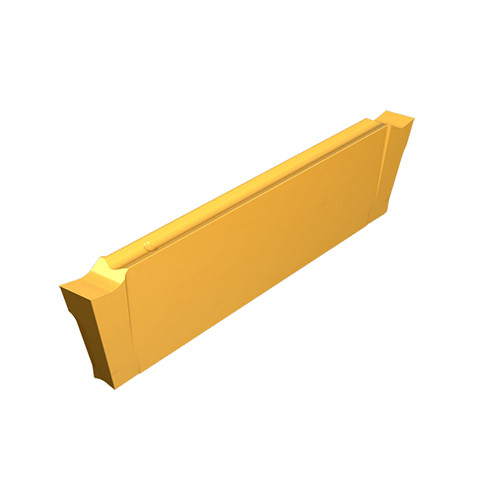

DGR 2000P-15D IC508
Very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used mainly on soft materials and thin parts at low feed rates.

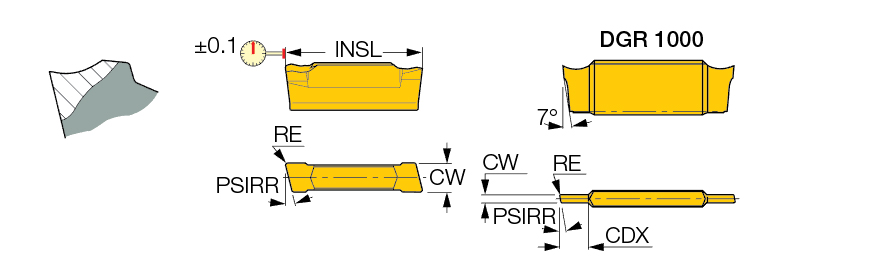

| Cutting Width (CW) | 2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.05 mm | Max. Grooving Feed (fg(max)) | 0.05 mm/rev |
| Overall Length (OAL) | 20.6 mm | Min. Grooving Feed (fg(min)) | 0.02 mm/rev |
| Cutting Depth Maximum (CDX) | 18 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC508 | Cutting Edge Angle Major Right Hand (PSIRR) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Application | | Parting | |
Product Features
| Family Description | Very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used mainly on soft materials and thin parts at low feed rates. | FamilyName | DGR-P |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0044
Name
Parting Off Indexable Inserts
FamilyName
DGR-P
BrandName
Iscar
