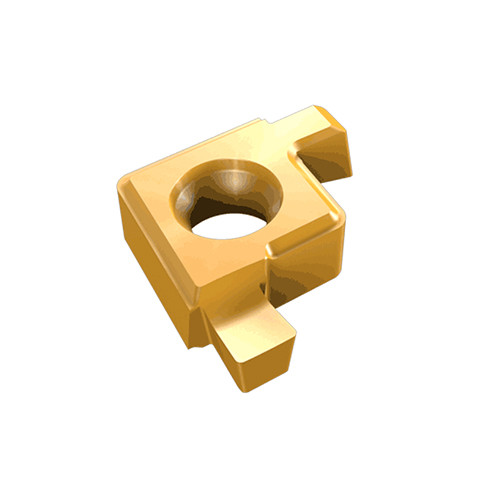

‎XCMT 05R-201802-MG IC808G

Two cutting edged internal grooving inserts for DR-MF multifunction tools.
MULTIFUNCTION TOOLS
Item # ISC5522272
Brand: Iscar
Mfr#: 5522272
UOM: EA
Please enter multiples of 10
Quantity Available
loading...

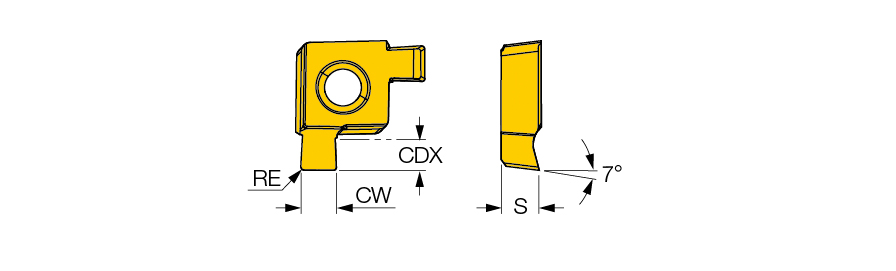

Cutting Width (CW) 2 mm Applicable Material | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium |
Corner Radius (RE) 0.2 mm Max. Grooving Feed (fg(max)) 0.07 mm/rev
Insert Thickness (S) 2.28 mm Min. Grooving Feed (fg(min)) 0.04 mm/rev
Overall Length (OAL) 5.6 mm Insert Rake Angle (GAN) 7 Degrees
Cutting Depth Maximum (CDX) 1.8 mm Tool Type Parting & Grooving Inserts
Cutting Edge Material Carbide Measurement Type Metric
Coating TiAlN+AlTiN+TiN Body Material Carbide
Grade IC808G Cutting Width Tolerance (+/-) (CWTOL) 0.02 mm
Cutting Direction (HAND) Right Hand Unit M
Application | Drilling Ext Face Int. Turning | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving |
‎XCMT 05R-201802-MG IC808G

Product Features

Family Description Two cutting edged internal grooving inserts for DR-MF multifunction tools. FamilyName XCMT-MG
COO Korea BrandName Iscar

Shipping Info

Weight per item
0.0023
Name
Parting Off Indexable Inserts
FamilyName
XCMT-MG
BrandName
Iscar
