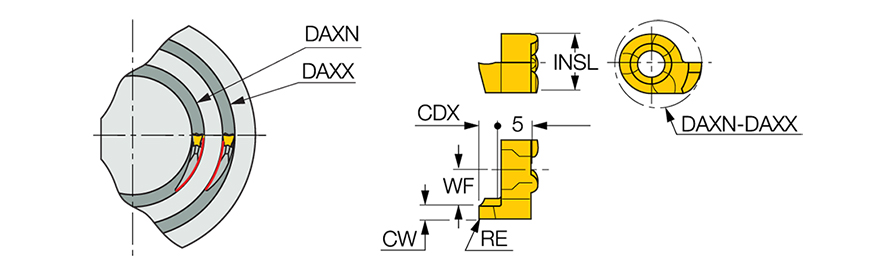

| Cutting Width (CW) | 1.5 mm | Functional Width (WF) | 5.5 mm |
| Insert Length (INSL) | 9 mm | Axial Groove Outside Diameter Maximum (DAXX) | 17 mm |
| Corner Radius (RE) | 0.2 mm | Axial Groove Outside Diameter Minimum (DAXN) | 12 mm |
| Cutting Depth Maximum (CDX) | 2.5 mm | Max. Face Grooving Feed (ffg(max)) | 0.04 mm/rev |
| Cutting Edge Material | Carbide | Min. Face Grooving Feed (ffg(min)) | 0.01 mm/rev |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Measurement Type | Metric |
| Grade | IC528 | Coating | TiCN+TiN |
| Application | | Face Grooving | Int. Face Grooving | | Body Material | Carbide |
| Tool Type | Face Turn-Groove Inserts | Unit | M |
Product Features
| Family Description | Screw clamped, face grooving inserts. | FamilyName | GFQR |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0052
Name

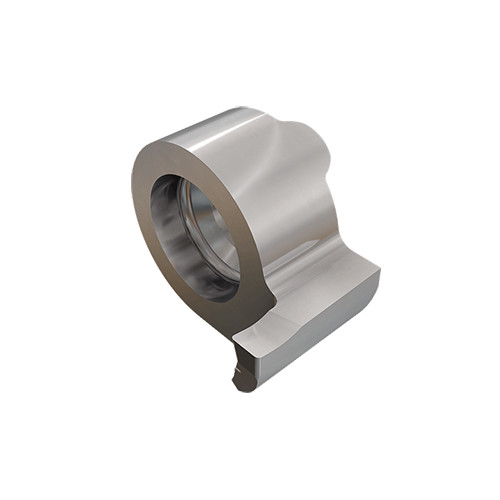

Face Groove/Turn Indexable Inserts
FamilyName
GFQR
BrandName
Iscar
