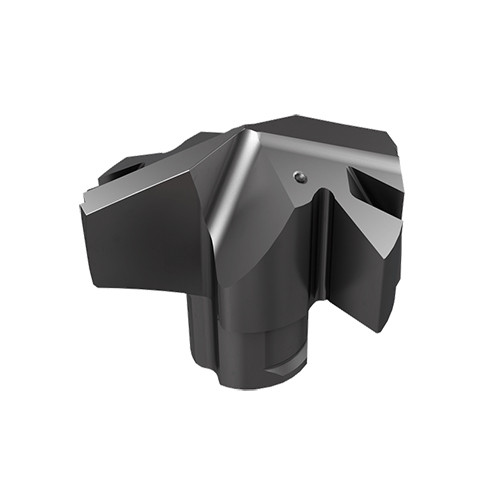

IHP 133 IC948
Exchangeable drilling heads for DCN drills, for machining ISO P materials (non-alloy and carbon steel)

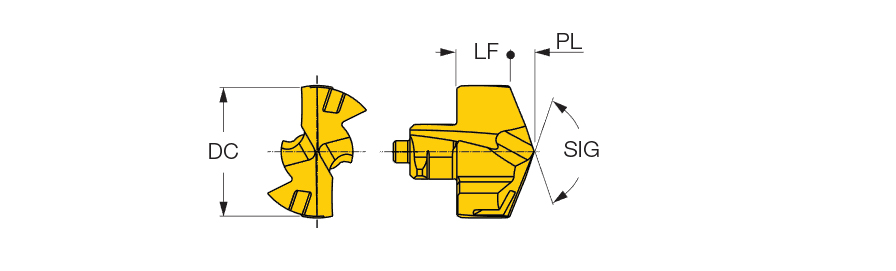

| Cutting Diameter (DC) | 13.3 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 2.01 mm |
| Grade | IC948 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlCrN |
| Insert Seat Size Code (SSC) | 13.0 | Body Material | Carbide |
| Functional Length (LF) | 5.59 mm | Unit | M |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO P materials (non-alloy and carbon steel) | COO | Israel |
| Remarks | Intermediate sizes can be supplied on request |
Shipping Info
Weight per item
0.0120
