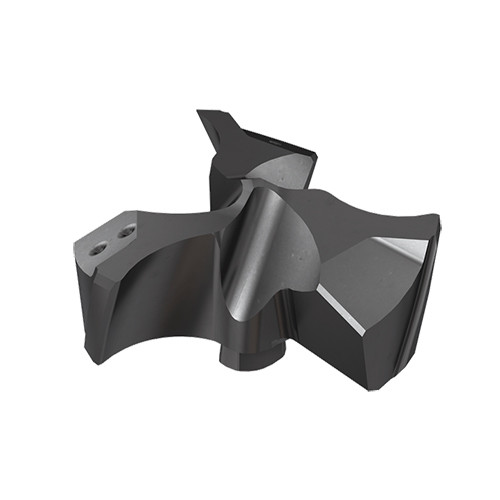

F3P 140-IQ IC908
Exchangeable 3 flute flat drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K).

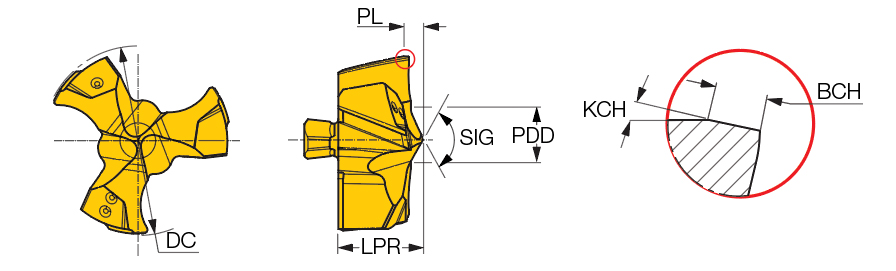

| Cutting Diameter (DC) | 14 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Point Length (PL) | 1.44 mm |
| Application | | Drilling | | Point Angle (SIG) | 125 Degrees |
| Grade | IC908 | Coating | TiAlN |
| Protruding Length (LPR) | 6.14 mm | Chamfer Angle | 15 Degrees |
| Insert Seat Size Code (SSC) | 14 | Body Material | Carbide |
| Functional Length (LF) | 4.7 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Exchangeable 3 flute flat drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K). | COO | Israel |
| Remarks | For nearly flat bottom hole applications |
Shipping Info
Weight per item
0.0130
