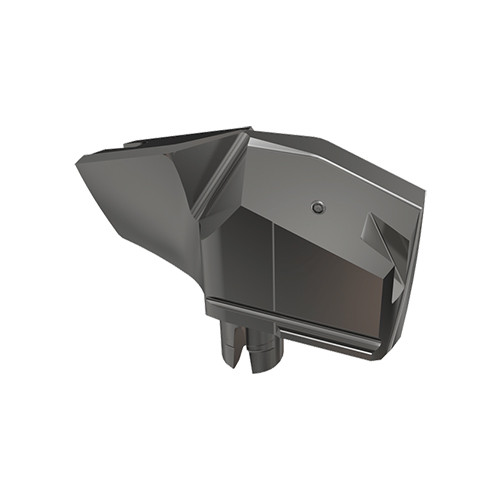

IFP 1375-SPADE IQ IC908
Exchangeable DFN drill heads for machining ISO P, ISO M and high temp. alloys (ISO S) materials

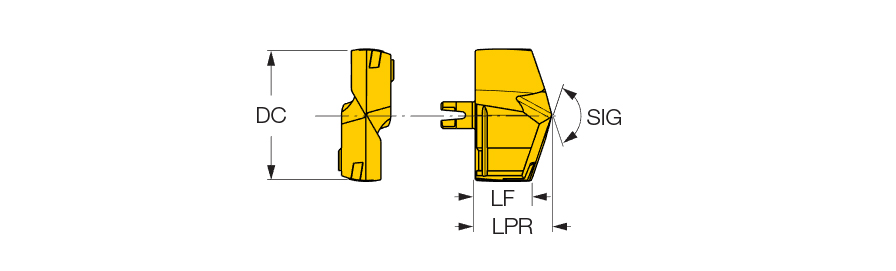

| Cutting Diameter (DC) | 1-3/8″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Drilling | | Point Length (PL) | 0.20902″ |
| Grade | IC908 | Point Angle (SIG) | 140 Degrees |
| Protruding Length (LPR) | 0.776″ | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 34.0 | Body Material | Carbide |
| Functional Length (LF) | 0.567″ | Unit | I |
Product Features
| Family Description | Exchangeable DFN drill heads for machining ISO P, ISO M and high temp. alloys (ISO S) materials | COO | Israel |
| Remarks | Intermediate sizes can be supplied on request Before using IFP geometry inserts with a drill above 5xD ratio, a pre-hole should be prepared by using a DFN 1.5xD to guide the drill (an endmill can be used) |
Shipping Info
Weight per item
0.1367
