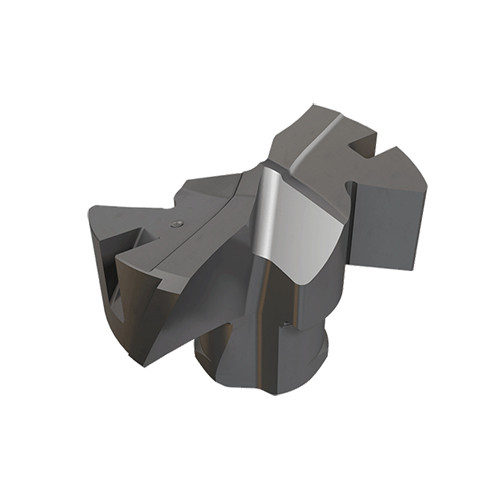

FCP 072 IC908
Exchangeable flat bottom drilling heads for DCN drills, for machining ISO P and ISO K materials. The drill head is designed with a honed cutting edge, available in increments of 0.1 mm.

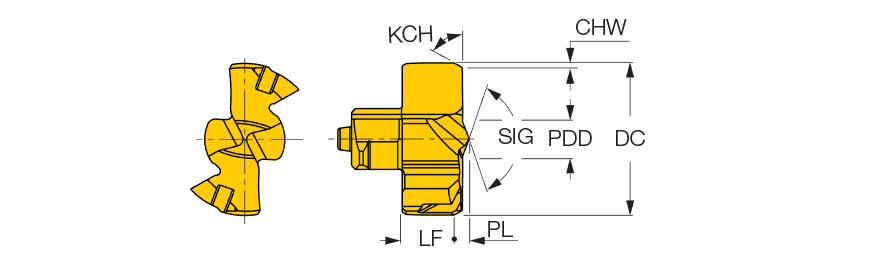

| Cutting Diameter (DC) | 7.2 mm | Insert Thickness (S) | 3.3 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Point Length (PL) | 0.68 mm |
| Application | | Chamfering | Drilling | | Point Angle (SIG) | 140 Degrees |
| Grade | IC908 | Coating | TiAlN |
| Tool Type | Drilling Heads | Pilot Drill Diameter (PDD) | 2.25 mm |
| Protruding Length (LPR) | 3.58 mm | Corner Chamfer Width (CHW) | 0.23 mm |
| Insert Seat Size Code (SSC) | 7.0 | Chamfer Angle | 60 Degrees |
| Functional Length (LF) | 2.9 mm | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Measurement Type | Metric |
Product Features
| Family Description | Exchangeable flat bottom drilling heads for DCN drills, for machining ISO P and ISO K materials. The drill head is designed with a honed cutting edge, available in increments of 0.1 mm. | COO | Israel |
| Remarks | For nearly flat bottom hole applications |
Shipping Info
Weight per item
0.0050
