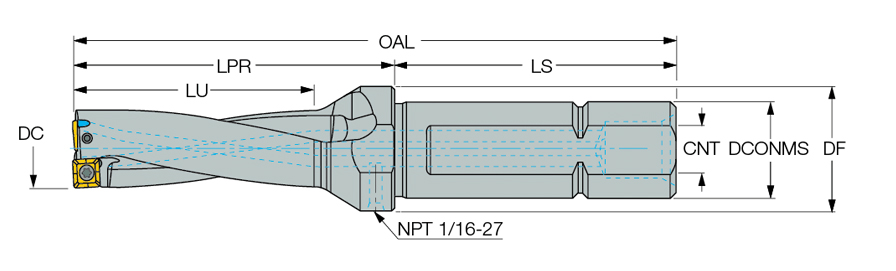

| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3″ | Cutting Diameter Maximum (DCX) | 1.161″ |
| Application | | Drilling | | Flange Diameter (DF) | 1.654″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMT 09T306-DT |
| Protruding Length (LPR) | 4.3″ | Body Material | Steel |
| Shank Length (LS) | 3″ | Decimal Equivalent | 1″ |
| Functional Length (LF) | 4.27″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 7.3″ | Unit | I |
Product Features

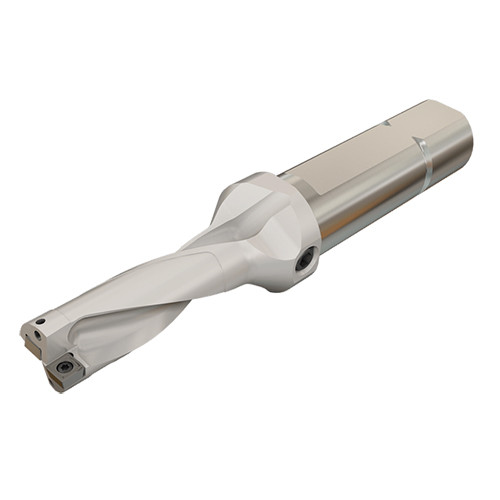

| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD. | COO | Israel |
| Remarks | Hole tolerance D+.009/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
Weight per item
1.8254
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
