‎D3N 0866-130-100A-1.5D

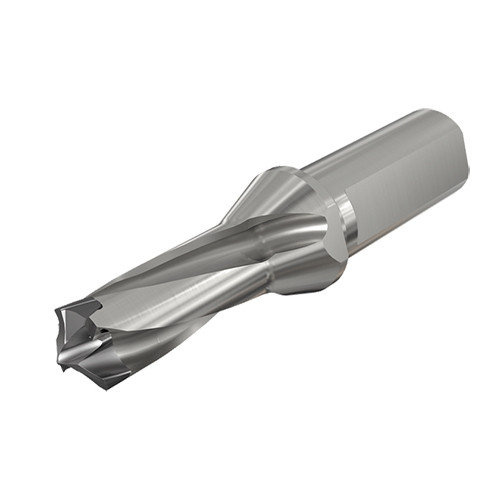

Exchangeable head 3 flute drills with internal coolant holes and one flat shank. Drilling Depth: 1.5xD
QUICK3CHAM
Item # ISC3362960
Brand: Iscar
Mfr#: 3362960
UOM: EA
Quantity Available
loading...

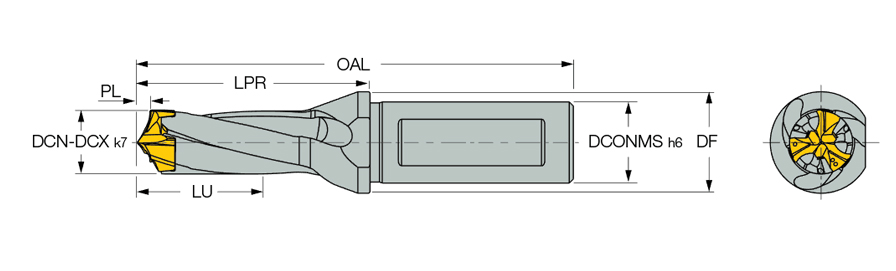

Cutting Diameter (DC) 0.866″ Shank Length (LS) 2.21″
Usable Length (LU) 1.484″ Coolant Supply Property (CSP) Coolant Thru
Application | Drilling | Measurement Type Inch
Connection Diameter Machine Side (DCONMS) 1″ Master Insert Identification (MIID) H3P 0866
Insert Seat Size Code (SSC) 22 Point Length (PL) 0.1847″
Cutting Diameter Minimum (DCN) 0.866″ Body Material Steel
Cutting Diameter Maximum (DCX) 0.902″ Flange Diameter (DF) 1.26″
Protruding Length (LPR) 3.1″ Decimal Equivalent 0.866″
Overall Length (OAL) 5.3″ Unit I
‎D3N 0866-130-100A-1.5D

Product Features

Family Description Exchangeable head 3 flute drills with internal coolant holes and one flat shank. Drilling Depth: 1.5xD COO Israel
Remarks Do not mount smaller drilling heads other than the specified range of the drill body

Shipping Info

Weight per item
0.9899
