DCNM 120-036-M12-3D

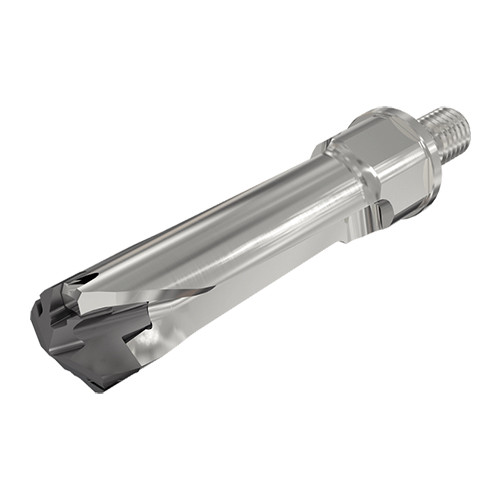

Modular SUMO-CHAM drill dedicated for multi-spindle and Swiss-type machines with FLEX-FIT connection for easy adaptation and set up.The DCNM drill can hold any of the SUMOCHAM drilling heads for different kinds of applications and materials

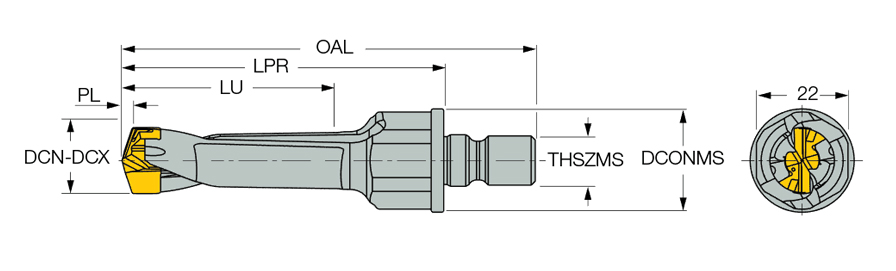

| Cutting Diameter (DC) | 12 mm | Overall Length (OAL) | 85 mm |
| Usable Length (LU) | 43 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 120 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 1.82 mm |
| Insert Seat Size Code (SSC) | 12.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 12 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Cutting Diameter Maximum (DCX) | 12.49 mm | Unit | M |
| Protruding Length (LPR) | 63 mm |
Product Features
| Family Description | Modular SUMO-CHAM drill dedicated for multi-spindle and Swiss-type machines with FLEX-FIT connection for easy adaptation and set up.The DCNM drill can hold any of the SUMOCHAM drilling heads for different kinds of applications and materials | COO | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.1110
Related Documentation
When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
