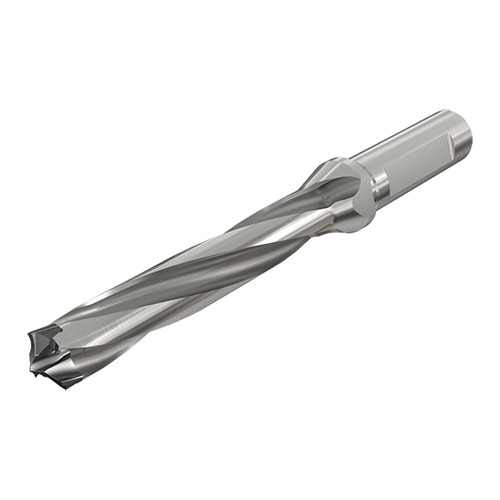

D3N 0591-295-075A-5D
Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 5xD

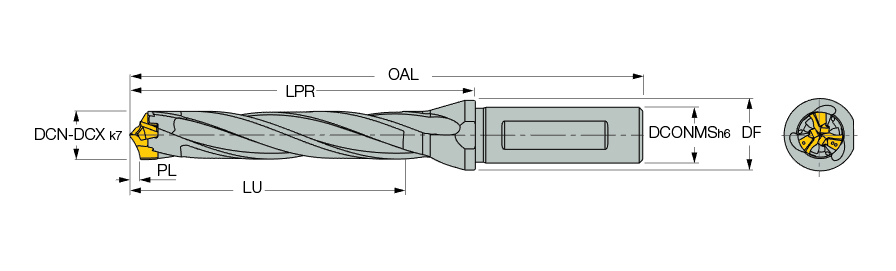

| Cutting Diameter (DC) | 0.591″ | Shank Length (LS) | 1.97″ |
| Usable Length (LU) | 3.089″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Master Insert Identification (MIID) | H3P 150-IQ |
| Insert Seat Size Code (SSC) | 15 | Point Length (PL) | 0.1366″ |
| Cutting Diameter Minimum (DCN) | 0.591″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.626″ | Flange Diameter (DF) | 0.98″ |
| Protruding Length (LPR) | 4.18″ | Decimal Equivalent | 0.591″ |
| Functional Length (LF) | 4.046″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 6.148″ | Unit | I |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 5xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.5137
