MNC1250-625-125-0709-07-5

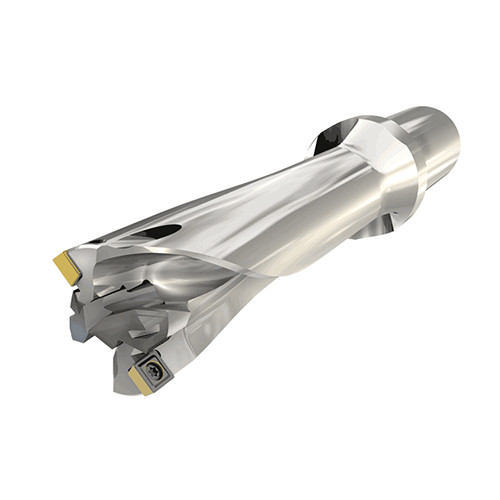

Large diameter full effective indexable drills with pilot drilling head and one flat shanks. Drilling depth 5xD. High drilling rates, high accuracy and surface finish.

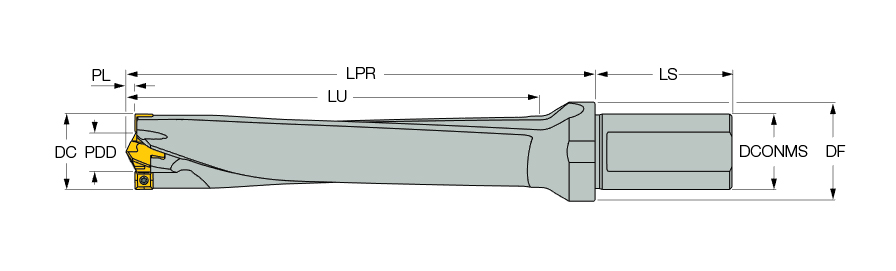

| Cutting Diameter (DC) | 1-1/4″ | Measurement Type | Inch |
| Usable Length (LU) | 6.38″ | Master Insert Identification (MIID) | SOGX 070305-W |
| Application | | Drilling | | Body Material | Steel |
| Tool Type | Indexable Insert Drills | Flange Diameter (DF) | 1.653″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Decimal Equivalent | 1.25″ |
| Protruding Length (LPR) | 7.94″ | Body Diameter (BD) | 0.709″ |
| Overall Length (OAL) | 10.304″ | Body Diameter Reduced (BDRED) | 1.653″ |
| Shank Length (LS) | 2.36″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | I |
Product Features
| Family Description | Large diameter full effective indexable drills with pilot drilling head and one flat shanks. Drilling depth 5xD. High drilling rates, high accuracy and surface finish. | COO | Israel |
| Remarks | Hole tolerance: D+.004/-.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions Intermediate sizes are available on request |
Shipping Info
Weight per item
2.4405
