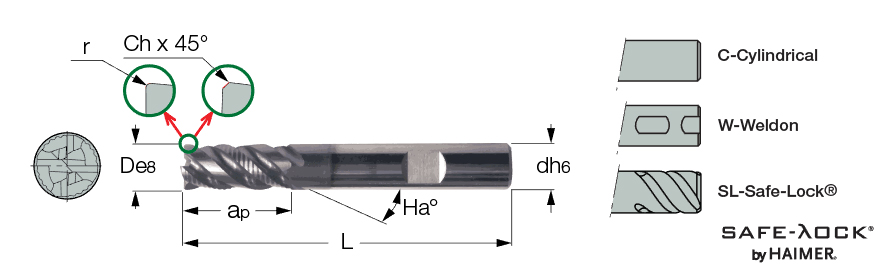

EFSI-B44 250-500C250 IC900

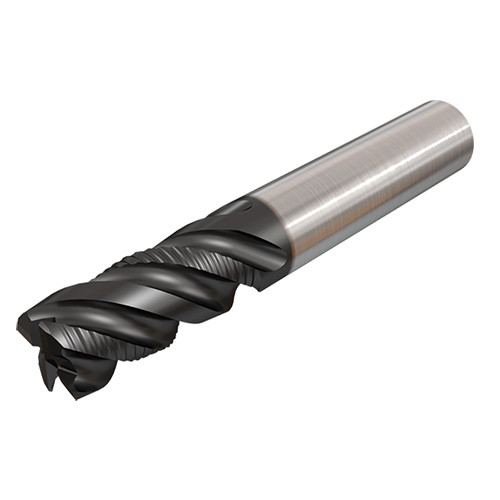

FINISHRED, A combination of roughing and finishing solid carbide endmills in a single tool. 4 flute, medium length, 45° helix.
| Cutting Diameter (DC) | 1/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Overall Length (OAL) | 2-1/2″ | Maximum Feed per Tooth (fz(max)) | 0.002 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Decimal Equivalent | 0.25″ |
| Shank Type | Round | Measurement Type | Inch |
| Forma | Chamfer | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 1/2″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | I |
| Corner Chamfer Width (CHW) | 0.01″ |
Product Features
| Family Description | FINISHRED, A combination of roughing and finishing solid carbide endmills in a single tool. 4 flute, medium length, 45° helix. | FamilyName | EFSI-B44 |
| Remarks | Minimum width of cut for semi-finishing operation >= 0.05 x DC IC300 should be mainly used for machining exotic materials | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0661
Name
Square & Corner Radius End Mills
FamilyName
EFSI-B44
BrandName
Iscar
