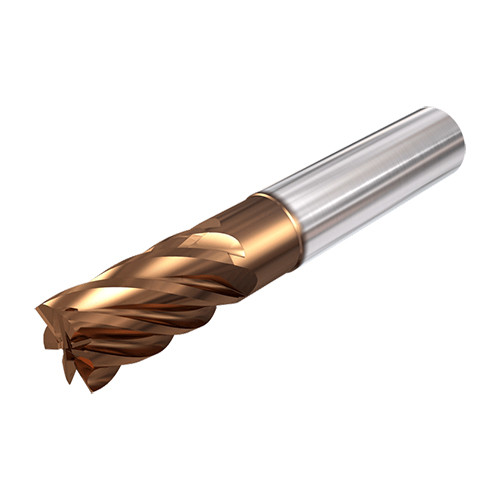

ECI-6 250-1C030VF3 IC608
6 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening

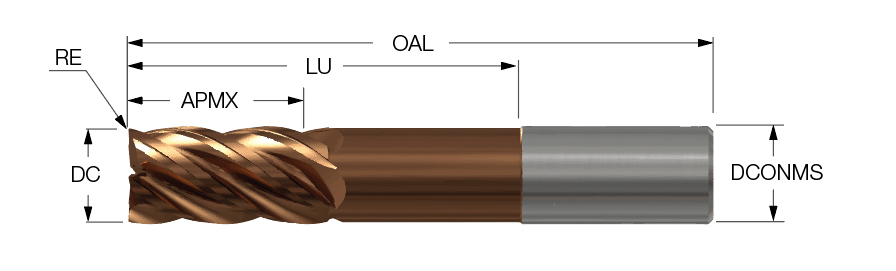

| Cutting Diameter (DC) | 1/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Grade | IC608 |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 3″ | Maximum Feed per Tooth (fz(max)) | 0.0022 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | AlTiCrSiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.25″ |
| Forma | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | I |
| Corner Radius (RE) | 0.03″ |
Product Features
| Family Description | 6 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening | FamilyName | ECI-6-VF |
| COO | USA | BrandName | Iscar |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
ECI-6-VF
BrandName
Iscar
