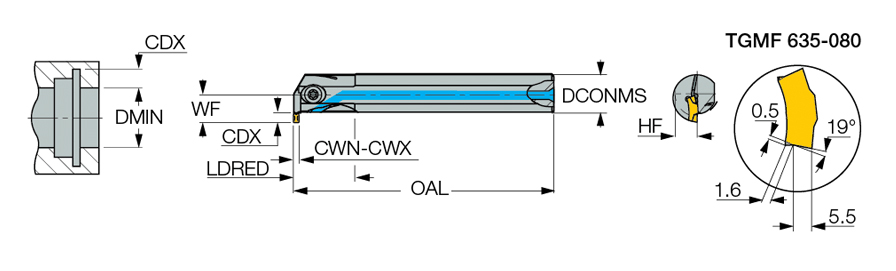

| Cutting Width Minimum (CWN) | 6 mm | Overall Length (OAL) | 220 mm |
| Cutting Width Maximum (CWX) | 6.35 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Depth Maximum (CDX) | 17.5 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Body Width (WB) | 5.2 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 57 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 29 mm | Measurement Type | Metric |
| Head Length (LH) | 50 mm | Unit | M |
Product Features
| Family Description | Internal boring bars with coolant holes carrying TOP-GRIP utility grooving and turning inserts. | FamilyName | TGIR/L-C |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.2100
Name
Groove/Turn Indexable Holders
FamilyName
TGIR/L-C
BrandName
Iscar
Related Documentation

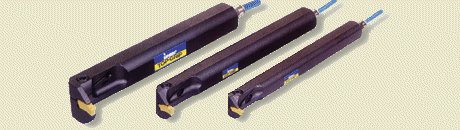

Bar holders with internal coolant supply for internal grooving and multi-directional turning machining with TOP-GRIP TGMF inserts. Excellent evacuation of chips. Minimum bore diameter 20.5 mm.
