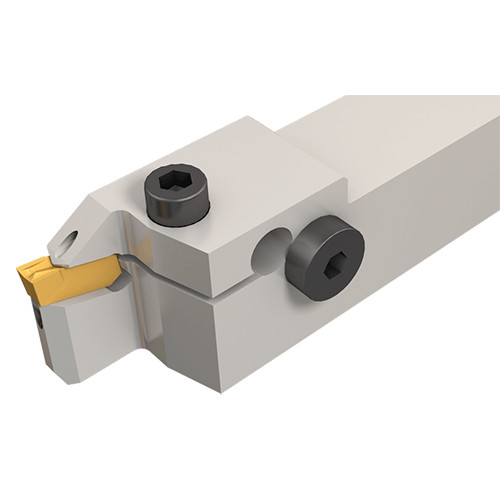

GHDR 25-5-JHP
Grooving and turning CUT-GRIP tools with channels for high-pressure coolant.

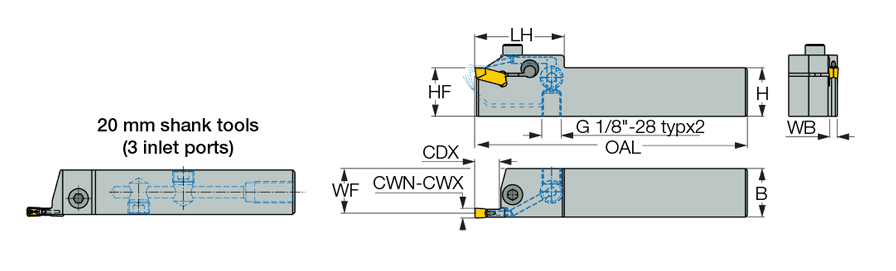

| Cutting Width Minimum (CWN) | 5 mm | Overall Length (OAL) | 140 mm |
| Cutting Width Maximum (CWX) | 6.4 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Cutting Depth Maximum (CDX) | 12 mm | Body Material | Steel |
| Shank Height (H) | 25 mm | Tool Type | Turn-Groove Tools |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Functional Width (WF) | 22.9 mm | Unit | M |
| Head Length (LH) | 46 mm |
Product Features
| Family Description | Grooving and turning CUT-GRIP tools with channels for high-pressure coolant. | FamilyName | GHDR/L-JHP (short pocket) |

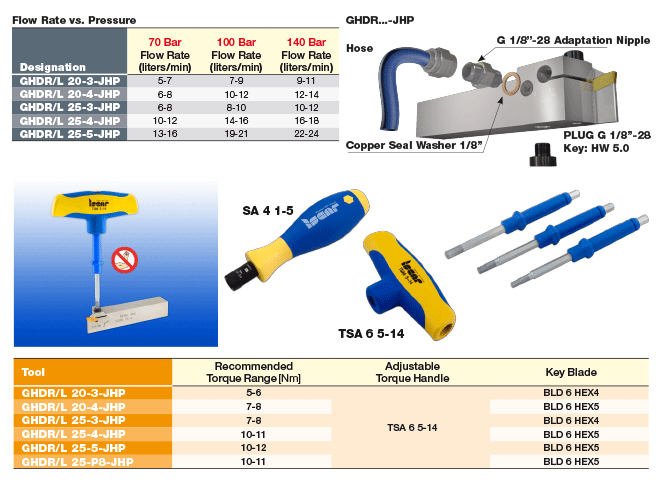

| Remarks | For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified For more details click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7020
Name
Groove/Turn Indexable Holders
FamilyName
GHDR/L-JHP (short pocket)
BrandName
Iscar
