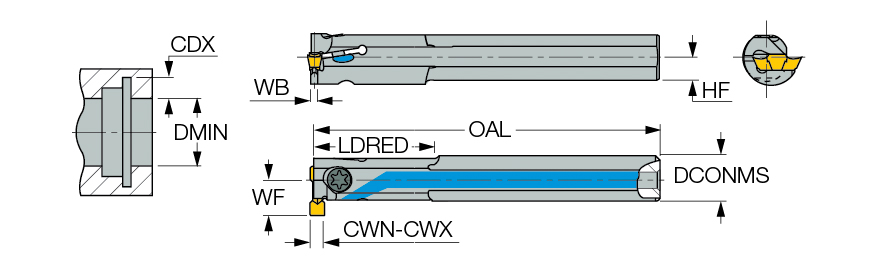

| Cutting Width Minimum (CWN) | 0.095″ | Overall Length (OAL) | 6″ |
| Cutting Width Maximum (CWX) | 0.126″ | Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Cutting Depth Maximum (CDX) | 0.118″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Int.) | |
| Body Width (WB) | 0.079″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.63″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.43″ | Measurement Type | Inch |
| Head Length (LH) | 1.57″ | Unit | I |
Product Features
| Family Description | Internal machining bars with a coolant holes using GEMI and GEPI inserts in widths larger than .075″. | FamilyName | GEHIR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.5049
Name

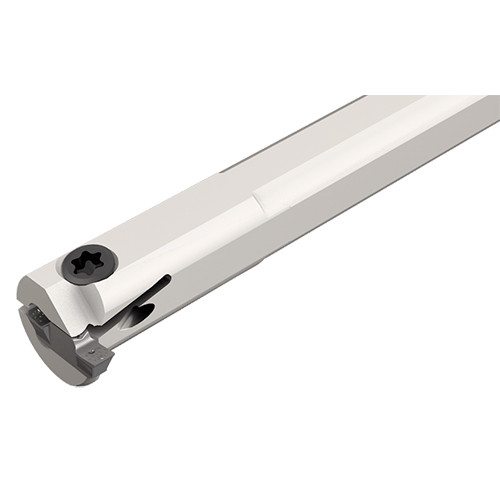

Groove/Turn Indexable Holders
FamilyName
GEHIR/L
BrandName
Iscar
