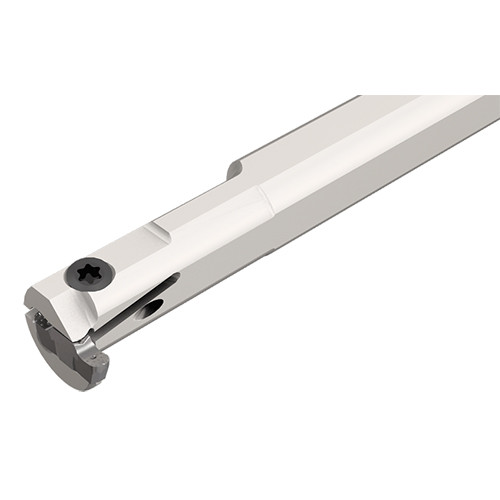

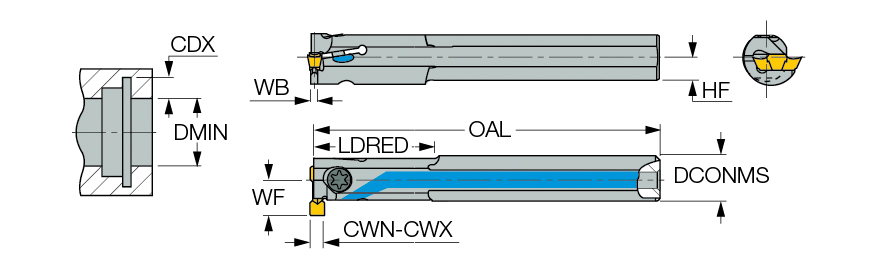

GEHIR 16-16-3-T3
| Cutting Width Minimum (CWN) | 2.4 mm | Overall Length (OAL) | 160 mm |
| Cutting Width Maximum (CWX) | 3.2 mm | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Depth Maximum (CDX) | 3 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Int.) | |
| Body Width (WB) | 2 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 16 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 11 mm | Measurement Type | Metric |
| Head Length (LH) | 40 mm | Unit | M |
Product Features
| Family Description | Internal machining bars with coolant holes using GEMI and GEPI inserts in widths larger than 1.9 mm. | FamilyName | GEHIR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2430
Name
Groove/Turn Indexable Holders
FamilyName
GEHIR/L
BrandName
Iscar
