| Cutting Depth Maximum (CDX) | 0.984″ | Overall Length (OAL) | 5″ |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Square Shanks |
| Functional Width (WF) | 0.646″ | Measurement Type | Inch |
| Head Length (LH) | 1.77″ | Unit | I |
Product Features
| Family Description | External holders for grooving and turning with GADR/L and GAFG adapters. | FamilyName | GHAR/L-8 |
| Remarks | Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving f=f1+f2(see adapter dimensions) | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.6050
Name

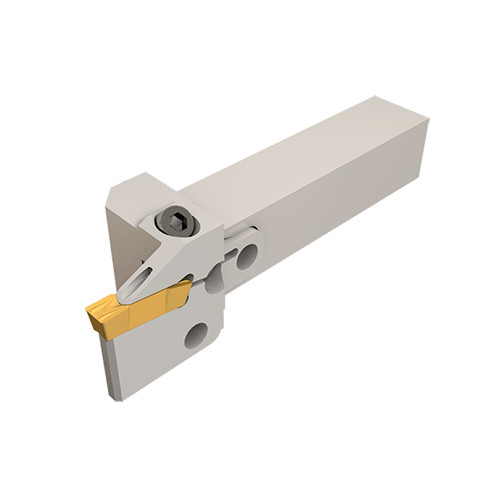

Groove/Turn Indexable Holders
FamilyName
GHAR/L-8
BrandName
Iscar
