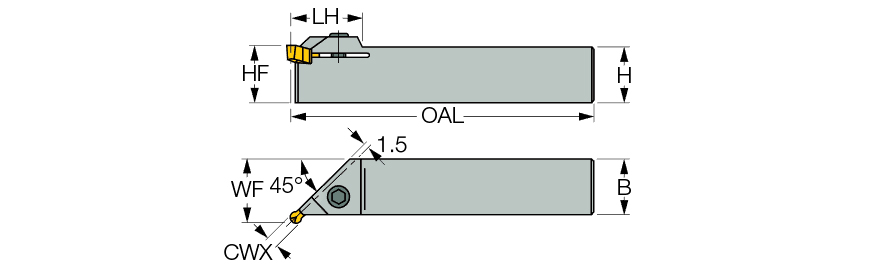

| Cutting Width Maximum (CWX) | 6.4 mm | Application | | Ext. Undercut | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 28 mm | Measurement Type | Metric |
| Head Length (LH) | 25 mm | Unit | M |
| Overall Length (OAL) | 137 mm |
Product Features

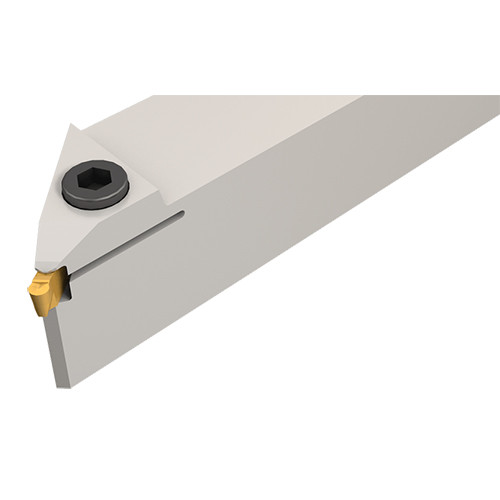

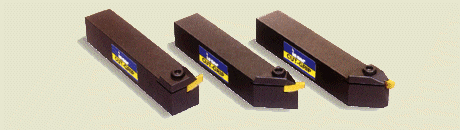

| Family Description | CUT-GRIP external holders for 45° undercutting. | FamilyName | GHMUR/L |
| Remarks | For D>100 mm, GIP/GIF inserts can be used (clearance types UN, D or G are not required). To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6520
Name
Groove/Turn Indexable Holders
FamilyName
GHMUR/L
BrandName
Iscar
