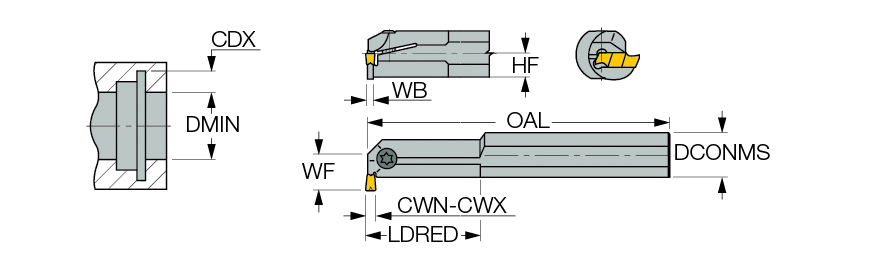

| Cutting Width Minimum (CWN) | 0.098″ | Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Width Maximum (CWX) | 0.157″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 0.197″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.984″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.69″ | Measurement Type | Inch |
| Head Length (LH) | 2″ | Unit | I |
| Overall Length (OAL) | 8″ |
Product Features

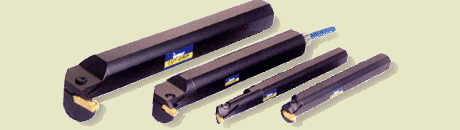

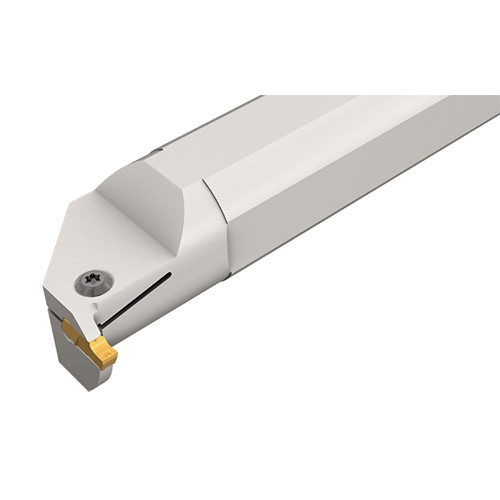

| Family Description | Grooving and turning boring bars. | FamilyName | GHIR/L (W=.078-.252) |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.6645
Name
Groove/Turn Indexable Holders
FamilyName
GHIR/L (W=.078-.252)
BrandName
Iscar
