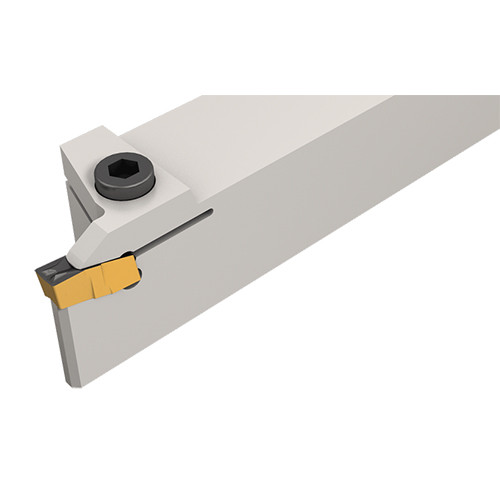

GHDR 20-4

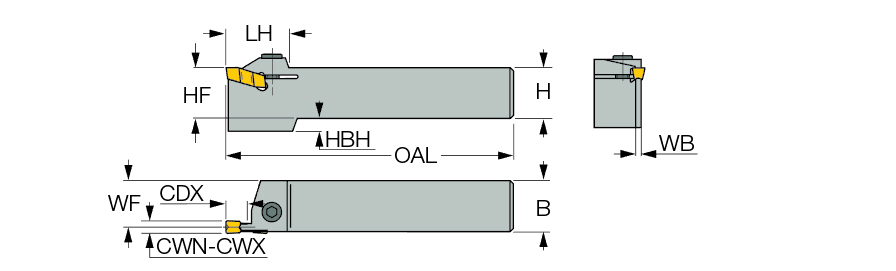

| Cutting Width Minimum (CWN) | 4 mm | Head Length (LH) | 26 mm |
| Cutting Width Maximum (CWX) | 5 mm | Overall Length (OAL) | 120 mm |
| Cutting Depth Maximum (CDX) | 10 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Turn-Groove Tools |
| Body Width (WB) | 3.2 mm | Measurement Type | Metric |
| Functional Width (WF) | 18.4 mm | Unit | M |
Product Features
| Family Description | External tools for turning, grooving and parting. | FamilyName | GHDR/L (short pocket) |

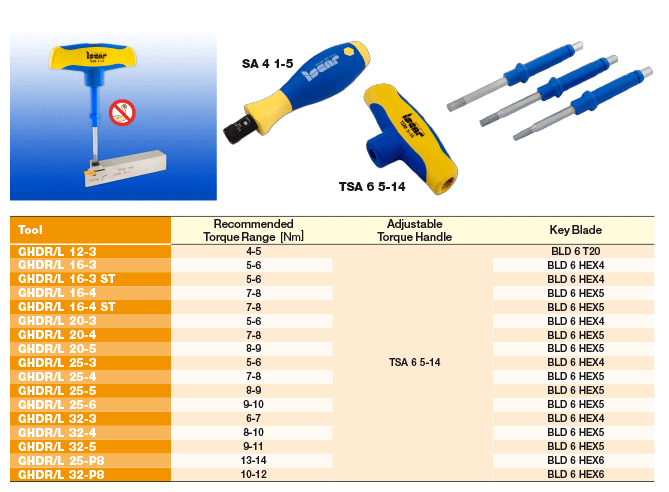

| Remarks | For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3920
Name
Groove/Turn Indexable Holders
FamilyName
GHDR/L (short pocket)
BrandName
Iscar
