DGTL 25.4B-3XL-D65
Integral shank reinforced parting and grooving tools for parting up to 2.56″ diameters.

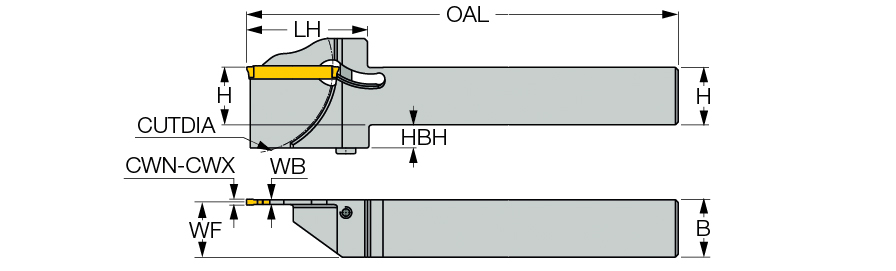

| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 0.094″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.6″ |
| Overall Length (OAL) | 5.91″ | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 1.7″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 1.28″ | Tool Assembly Length (LTA) | 2.307″ |
| Application | | Ext. Grooving | Parting | | Unit | I |
Product Features
| Family Description | Integral shank reinforced parting and grooving tools for parting up to 2.56″ diameters. | FamilyName | DGTR/L-XL |

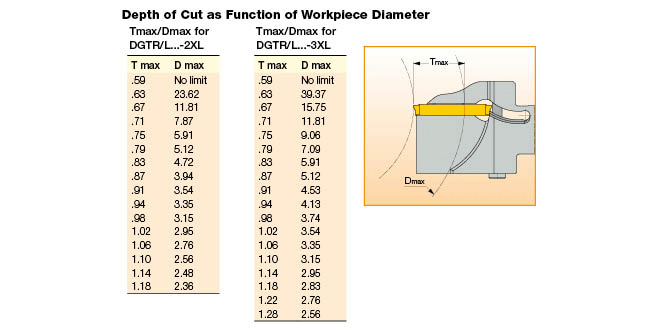

| Remarks | For insert depth capacity table, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.5565
Name
Parting Off Indexable Holders
FamilyName
DGTR/L-XL
BrandName
Iscar
