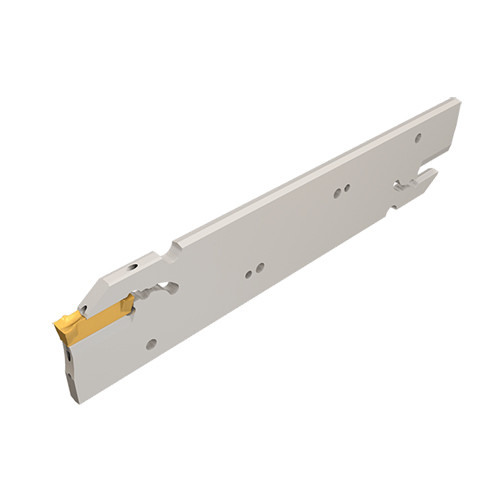

DGFH 32-6-JHP
Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts.

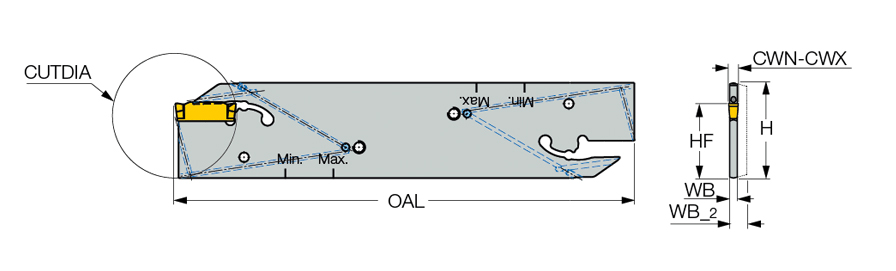

| Shank Height (H) | 32 mm | Body Material | Steel |
| Body Width (WB) | 5.2 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 6 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 90 mm |
| Cutting Width Maximum (CWX) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 160 mm | Measurement Type | Metric |
| Functional Length (LF) | 160 mm | Tool Assembly Length (LTA) | 45 mm |
| Application | | Ext. Grooving | Parting | | Unit | M |
| Number of Pocket (NOP) | 2 |
Product Features
| Family Description | Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts. | FamilyName | DGFH-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2050
Name
Parting Off Indexable Holders
FamilyName
DGFH-JHP
BrandName
Iscar
