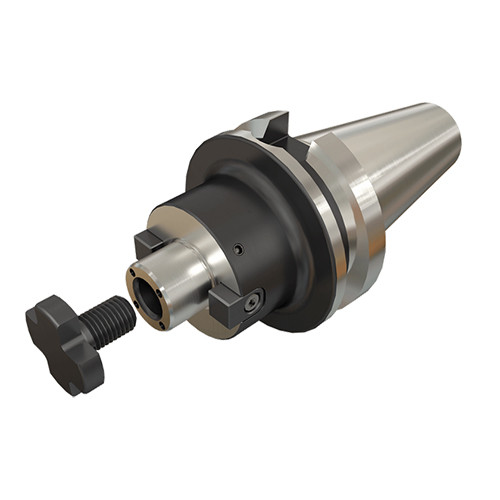

BT50 FC SEM16X120C

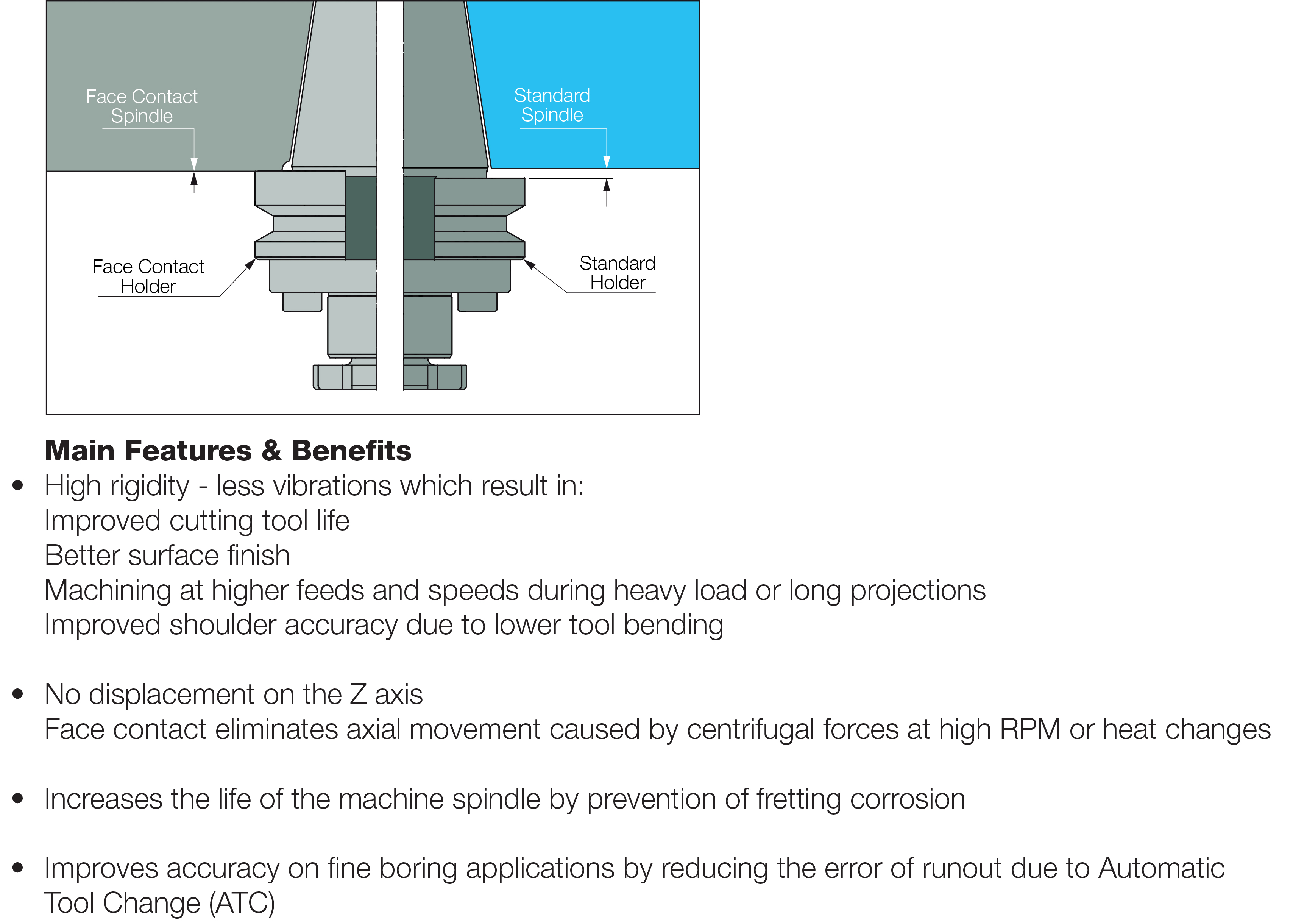

Shell endmill holders with coolant holes and BT MAS-403 face contact AD tapered shanks.

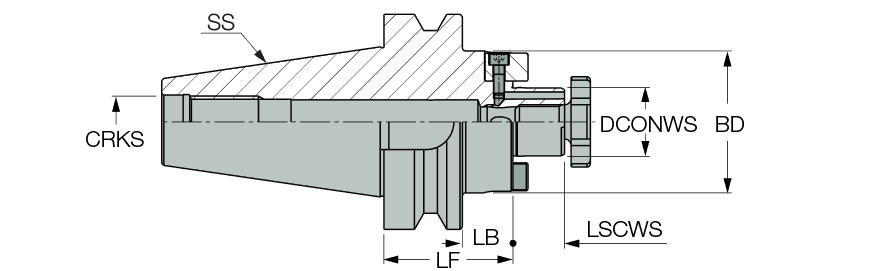

| Connection Diameter Machine Side (DCONMS) | 50 mm | Clamping Length Workpiece Side (LSCWS) | 17 mm |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Tool Type | BT |
| Shank Size (SS) | 50 | Measurement Type | Metric |
| Functional Length (LF) | 120 mm | Body Material | Steel |
| Body Diameter (BD) | 38 mm | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | Shell endmill holders with coolant holes and BT MAS-403 face contact AD tapered shanks. | FamilyName | BT-FC-SEM-C |
| Remarks | For adaptation details, click on More Info. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
4.4230
Name
Shell Mill Holders
FamilyName
BT-FC-SEM-C
BrandName
Iscar
