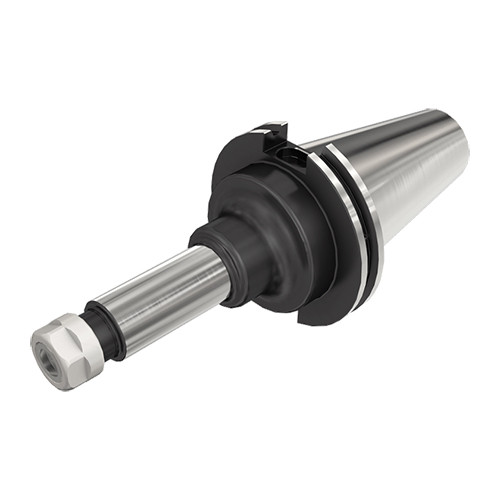

BT50 FC ER32X150
ER collet chucks with BT MAS-403 face contact AD tapered shanks.

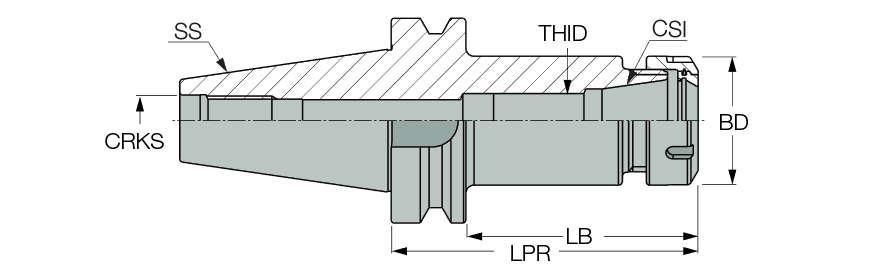

| Shank Size (SS) | 50 | Measurement Type | Metric |
| Connection Size (CSI) | ER32 | Body Material | Steel |
| Body Diameter (BD) | 50 mm | Connection Code Machine Side (CCMS) | BT |
| Protruding Length (LPR) | 150 mm | Unit | M |
| Tool Type | BT |
Product Features
| Family Description | ER collet chucks with BT MAS-403 face contact AD tapered shanks. | FamilyName | BT-FC-ER |
| Remarks | For adaptation details, click on More Info | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
4.9930
Name
Collet Chucks
FamilyName
BT-FC-ER
BrandName
Iscar
