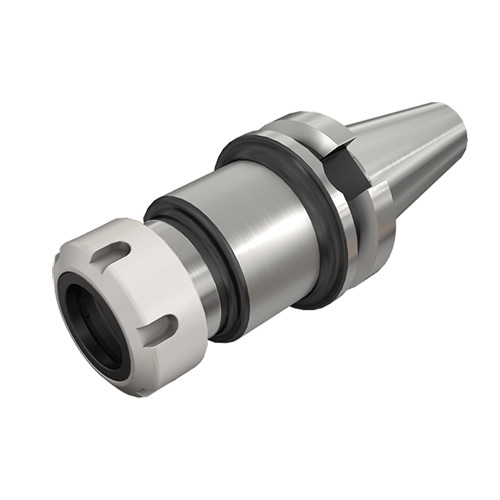

BT50 ER40X150
DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks.

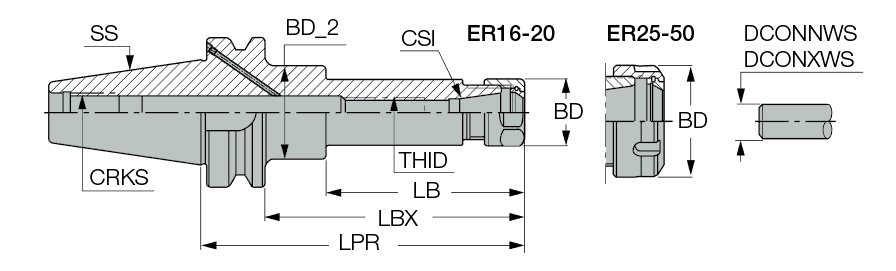

| Shank Size (SS) | 50 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 26 mm |
| Connection Size (CSI) | ER40 | Measurement Type | Metric |
| Body Diameter (BD) | 63 mm | Body Material | Steel |
| Protruding Length (LPR) | 150 mm | Connection Code Machine Side (CCMS) | BT |
| Tool Type | BT | Unit | M |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 3 mm |
Product Features
| Family Description | DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks. | FamilyName | BT-ER |
| Remarks | B is the designation for coolant through flange. | BrandName | Iscar |
| COO | India |
Shipping Info
Weight per item
5.5850
Name
Collet Chucks
FamilyName
BT-ER
BrandName
Iscar
