CAT ANSI/ASME B5.5 1994 Hydraulic Chucks
See all 14 in this Product Family

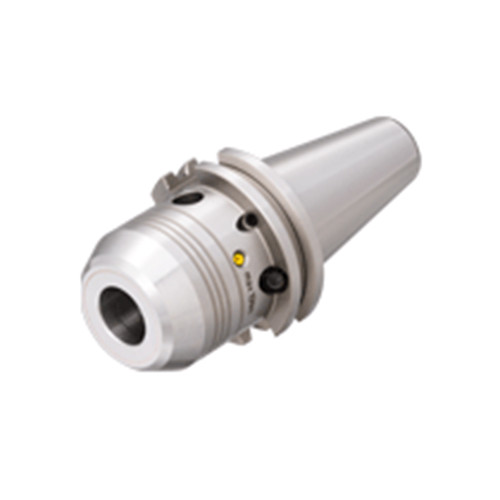

CAT50 HYDRO 1/2X3.228

Hydraulic chucks with coolant holes and Caterpillar form ADB tapered shanks.
HYDROFIT CAT
Item # ISC4559615
Brand: Iscar
Mfr#: 4559615
UOM: EA
Quantity Available
loading...

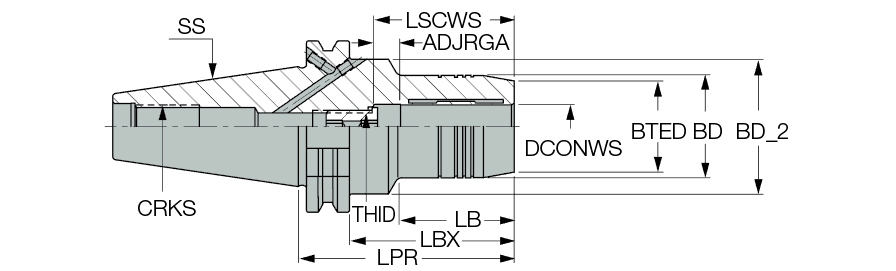

Body Length (LB) 1.653″ Tool Type DIN 69871
Connection Diameter Workpiece Side (DCONWS) 1/2″ Measurement Type Inch
Body Diameter (BD) 1.259″ Body Material Steel
Protruding Length (LPR) 3.228″ Connection Code Machine Side (CCMS) CAT
Shank Size (SS) 50 Unit I
CAT50 HYDRO 1/2X3.228

Product Features

Family Description Hydraulic chucks with coolant holes and Caterpillar form ADB tapered shanks. FamilyName CAT-HYDRO

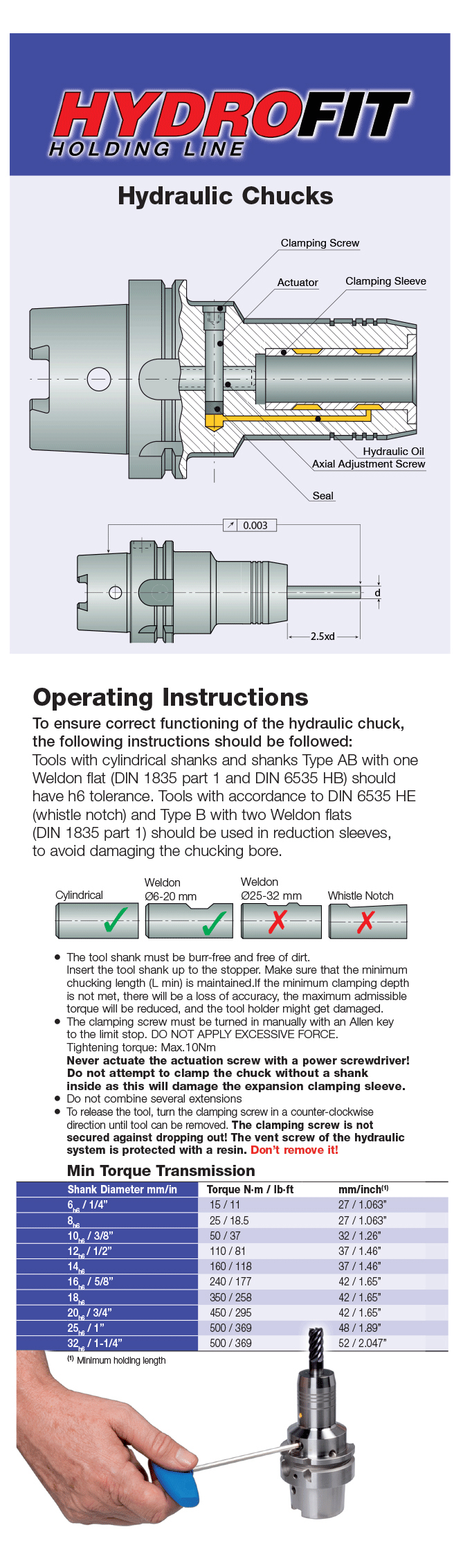

Remarks ‎Chucking forces will be reduced by 25% if reduction sleeves are used. Note: Reduction sleeves are available for 3/4 and 1-1/4 bore diameters (order separately). The coolant passages in the B type flange are blocked withscrews which can be removed when required. Clamping wrench (wrench HYDRO HEX 4) and test bar to be ordered separately. BrandName Iscar
COO Germany

Shipping Info

Weight per item
7.4869
Name
Hydraulic Holders
FamilyName
CAT-HYDRO
BrandName
Iscar
