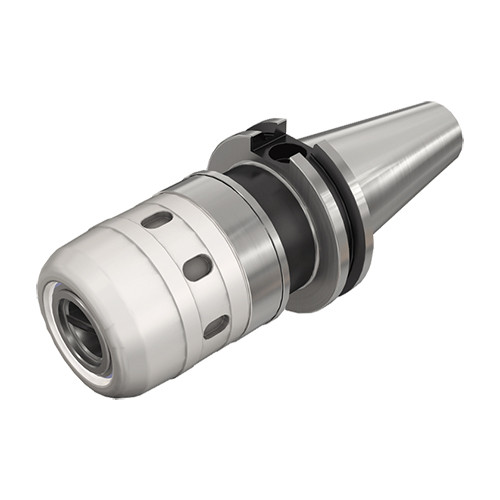

CAT50 MAXIN 1-1/4X4.05
Power chucks with Caterpillar form AD/B tapered shanks.

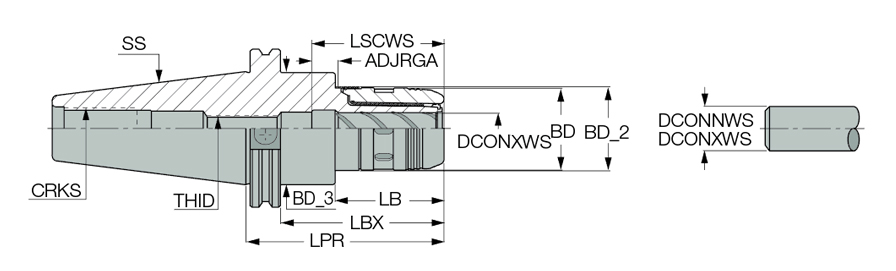

| Body Diameter (BD) | 2.717″ | Measurement Type | Inch |
| Protruding Length (LPR) | 4.05″ | Body Material | Steel |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 1-1/4″ | Connection Code Machine Side (CCMS) | CAT |
| Shank Size (SS) | 50 | Unit | I |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 1/4″ |
Product Features
| Family Description | Power chucks with Caterpillar form AD/B tapered shanks. | FamilyName | CAT-MAXIN |
| Remarks | Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. B is the designation for coolant through flange. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
9.4512
Name
Milling Chucks
FamilyName
CAT-MAXIN
BrandName
Iscar
