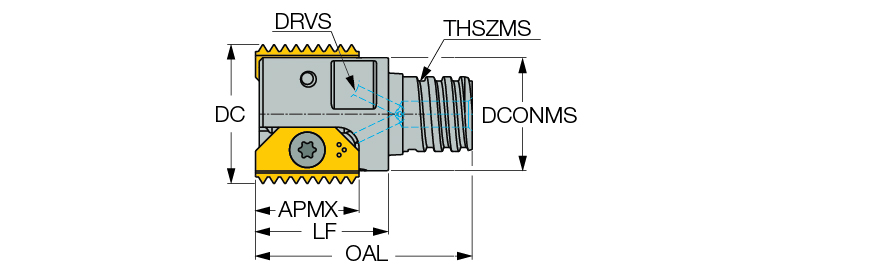

| Cutting Diameter (DC) | 20 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 15.3 mm | Tool Type | Indexable thread mills |
| Depth of Cut Maximum (APMX) | 14 mm | Measurement Type | Metric |
| Overall Length (OAL) | 35.3 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Count (NOF) | 3 | Thread Type (TTP_DF2) | INT |
| Body Material | Steel | Unit | M |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features

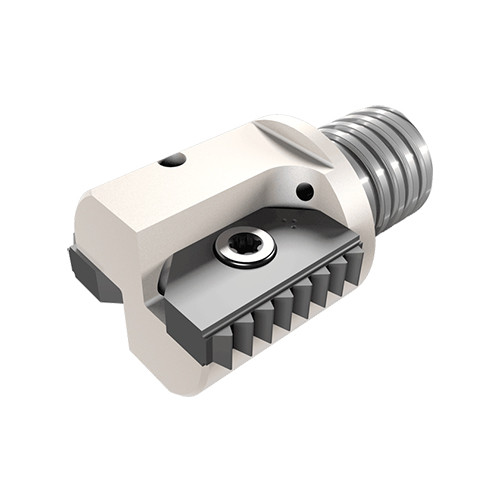

| Family Description | Indexable threading endmills with a MULTI-MASTER shank connection and coolant holes. | COO | Israel |
| Remarks | Tool cutting diameter should not exceed 2/3 of thread bore diameter For adaptation click on More Info. |
Shipping Info
Weight per item
0.0960
