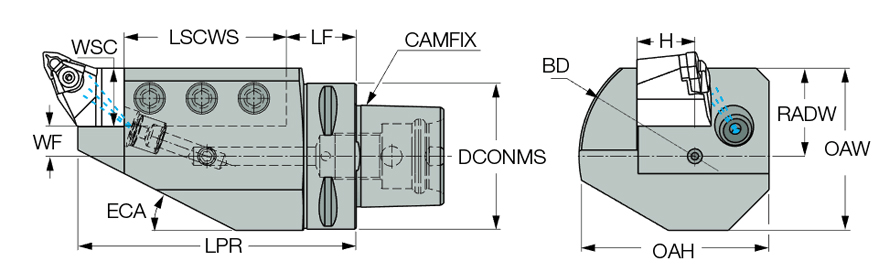

| Protruding Length (LPR) | 4.724″ | Shank Size (SS) | 63 |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Clamping Length Workpiece Side (LSCWS) | 2.756″ | Measurement Type | Inch |
| Shank Width (B) | 1″ | Body Material | Steel |
| Shank Height (H) | 1″ | Overall Height (OAH) | 3.23″ |
| Body Diameter (BD) | 3.937″ | Overall Length (OAL) | 6.22″ |
| Body Length (LB) | 1.181″ | Unit | I |
| Functional Width (WF) | 0.496″ | Overall Width (OAW) | 2.756″ |
Product Features

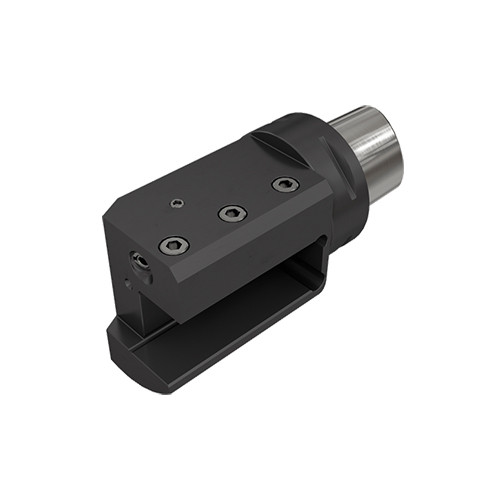

| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square-shank tools. | FamilyName | C#-ASHR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
7.2929
Name
Adapters
FamilyName
C#-ASHR/L
BrandName
Iscar
