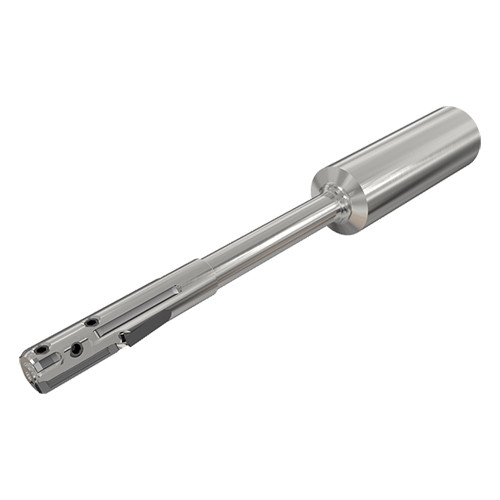

RM-SET25.000H6T-B-C25S
Single-edged indexable reamers for through holes.

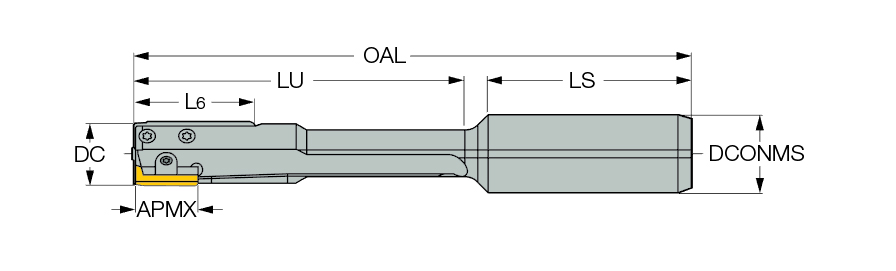

| Cutting Diameter (DC) | 25 mm | Overall Length (OAL) | 191 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Shank Length (LS) | 56 mm |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | | Body Material | Steel |
| Usable Length (LU) | 130 mm | Tool Type | Indexable Reaming Tools |
| Insert Seat Size Code (SSC) | 3.0 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 17 mm | Unit | M |
Product Features
| Family Description | Single-edged indexable reamers for through holes. | COO | Italy |

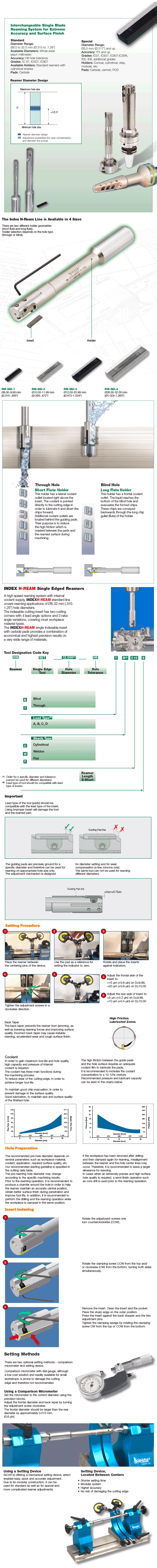

| Remarks | For user guide and cutting conditions, click on More Info |
Shipping Info
Weight per item
0.1000
