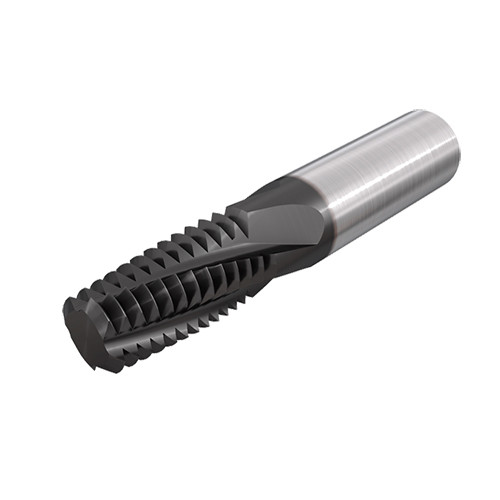

MTEC 1616D27 11.5NPT IC908
Solid carbide threading endmills for an external or internal NPT thread profile.

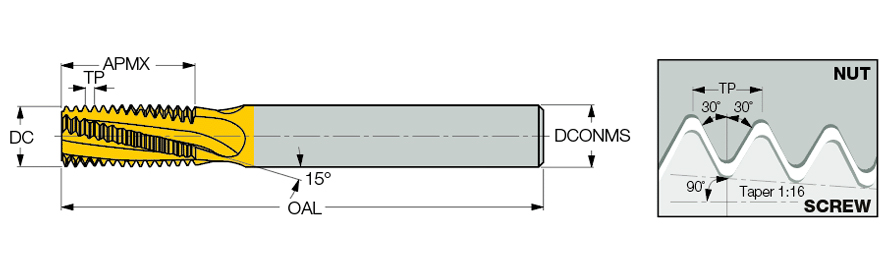

| Thread Pitch (TP) | 2.209 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 11.5 | Cutting Edge Material | Carbide |
| Thread Standard | NPT |THFT | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Grade | IC908 |
| Cutting Diameter (DC) | 14.24 mm | Tool Type | Solid carbide thread mills |
| Overall Length (OAL) | 101 mm | Depth of Cut Maximum (APMX) | 27.6 mm |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | NPT60 |
| Application | | External Thread Milling | Internal Thread Milling | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid carbide threading endmills for an external or internal NPT thread profile. | COO | Israel |
| Remarks | Internal & External tolerance: ANSI/ASME B1.20.1 - Standard NPT |
Shipping Info
Weight per item
0.2590
